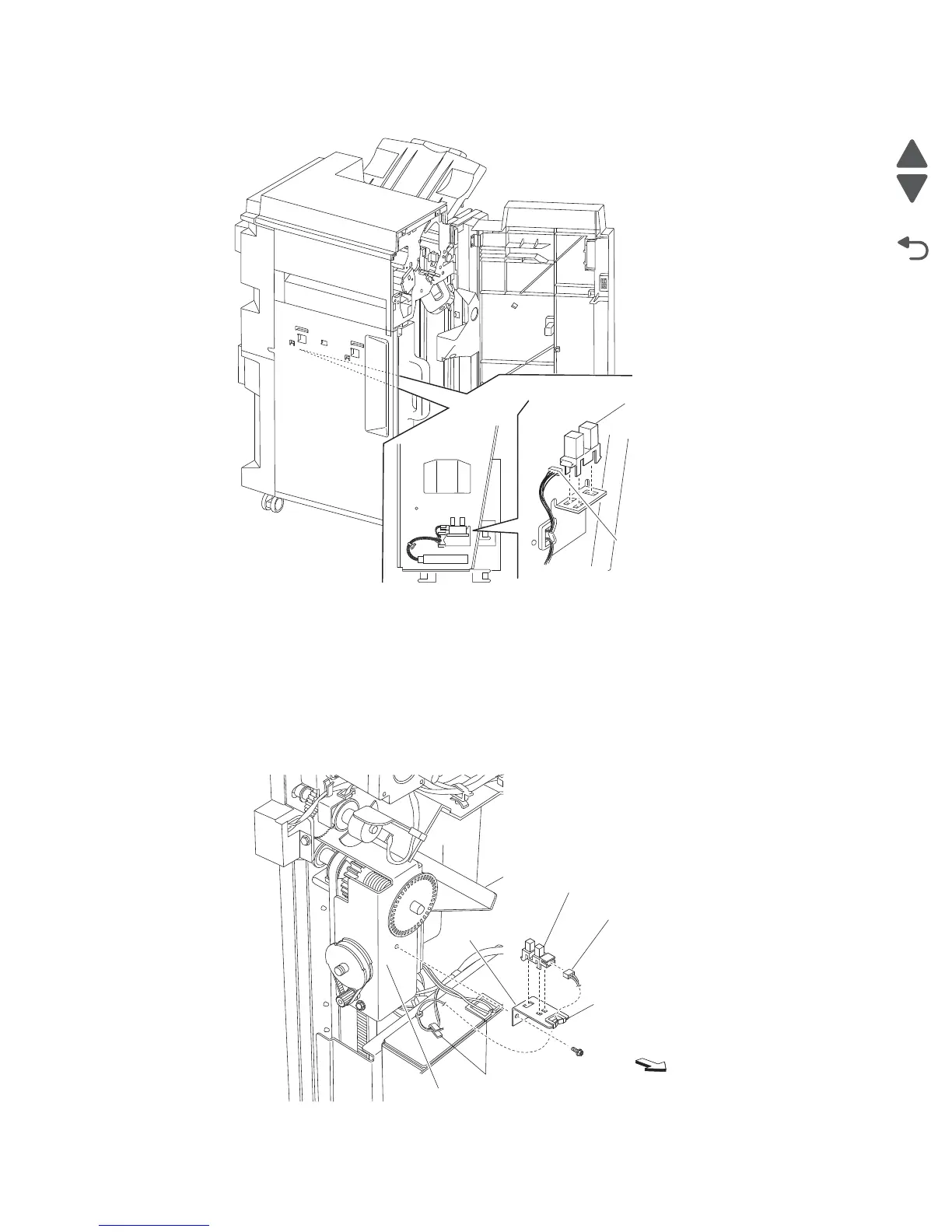

4. Release the hooks securing the sensor (punch waste box set) (A) to the finisher.
5. Remove the sensor (punch waste box set) (A).
Sensor (stacker bin level encoder) removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
2. Disconnect the connector from the sensor (stacker bin level encoder) (A).
3. Release the harness from the clamp.
4. Remove the screw securing the bracket (B) from the stacker bin lift motor assembly (C).
A
Connector
A
B
C
Rear
Clamp
Clamp
Connector
