Lexmark C950 - Sensor (Booklet Unit Media Exit) Removal

Repair information 4-317
5058-030
Go Back
Previous
Next
4. Disconnect the connector from the sensor (booklet unit interlock).
5. Remove sensor (booklet unit interlock) (A).
Sensor (booklet unit media exit) removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the booklet unit assembly left cover. See “Booklet unit assembly left cover removal” on
page 4-262.
3. Remove the screw securing the Sensor (booklet unit media exit) bracket from the booklet unit assembly.

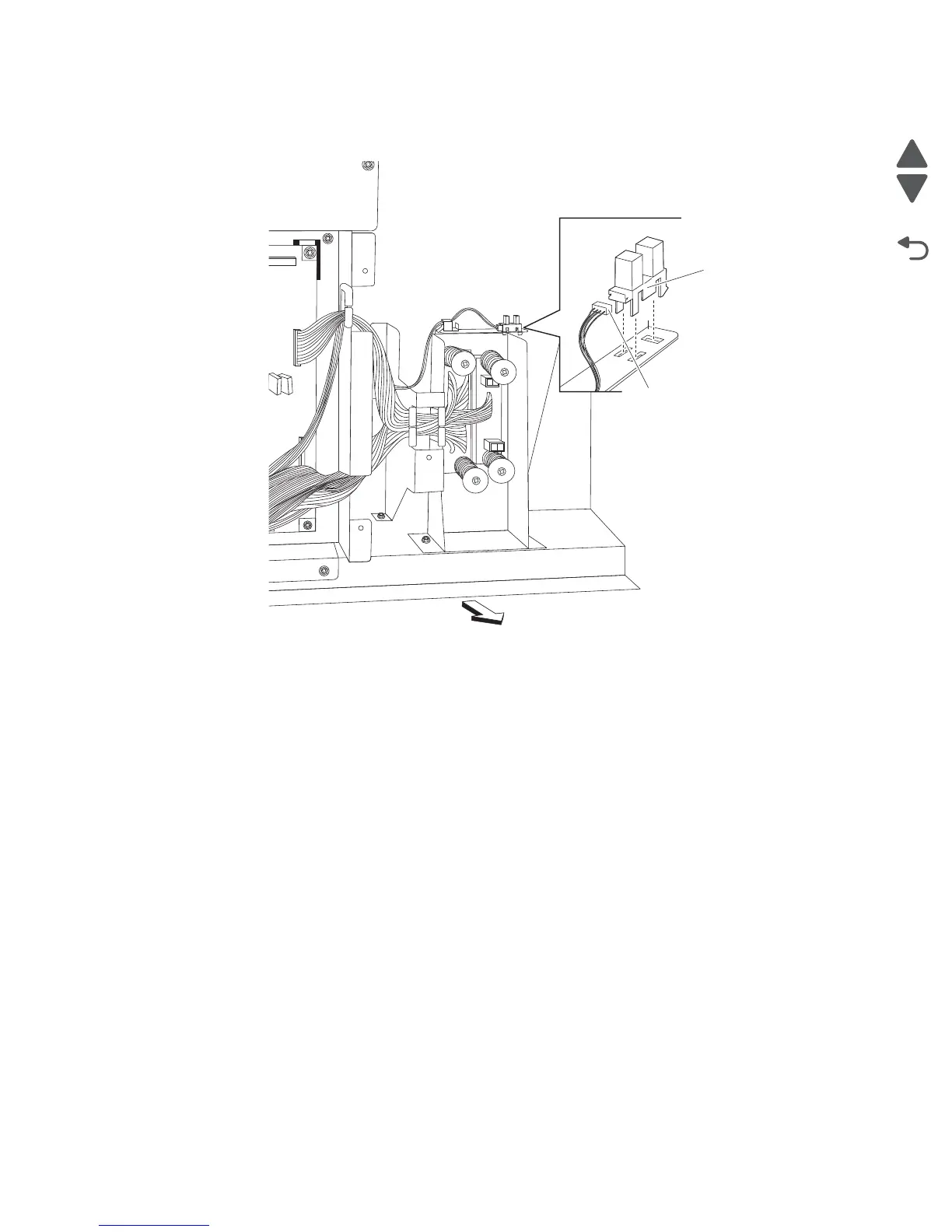

4. Disconnect the connector from the Sensor (booklet unit media exit) (A).
5. Remove the screw securing the Sensor (booklet unit media exit) (A) from the bracket.
Connector
A
Rear
