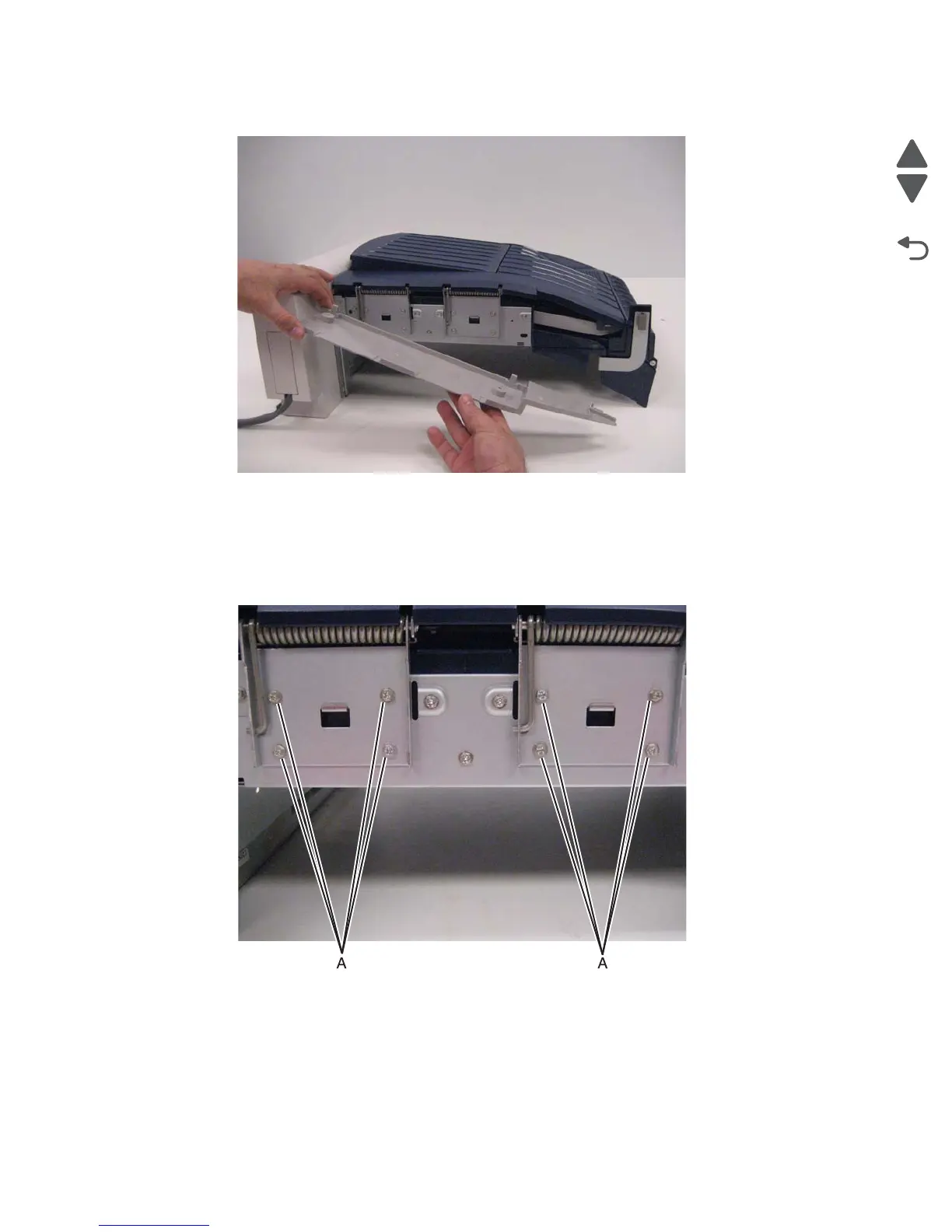

3. Remove the bridge unit rear cover.
Bridge unit top door removal
1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-232.
2. Remove the bridge unit rear cover. See “Bridge unit rear cover removal” on page 4-233.
3. Remove the eight screws (A) securing the bridge unit top door to the machine.
4. Raise the bridge unit top door to an upright position.
