Lexmark C950 - Booklet Knife Sector Drive Gear 42 T Removal

4-256 Service Manual
5058-030
Go Back
Previous
Next

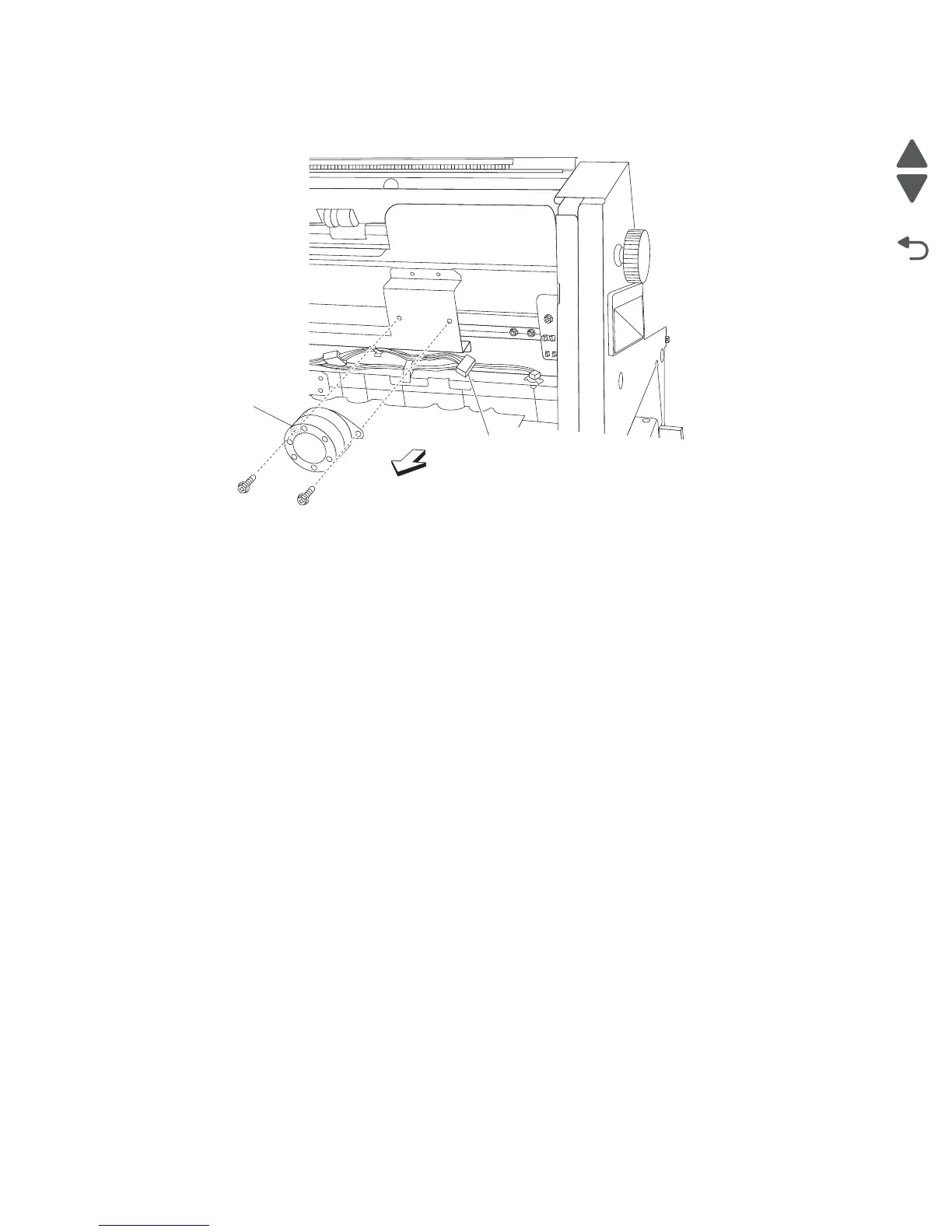

4. Remove the two screws securing the booklet front tamper motor from the tamper frame assembly.
5. Remove the booklet front tamper motor (A).
Booklet knife sector drive gear 42T removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the booklet unit motor assembly. See “Booklet folding/exit drive motor assembly removal”
on page 4-254.
3. Remove the knife solenoid frame. See “Booklet fold solenoid frame removal” on page 4-253.
Left
Connector
A
