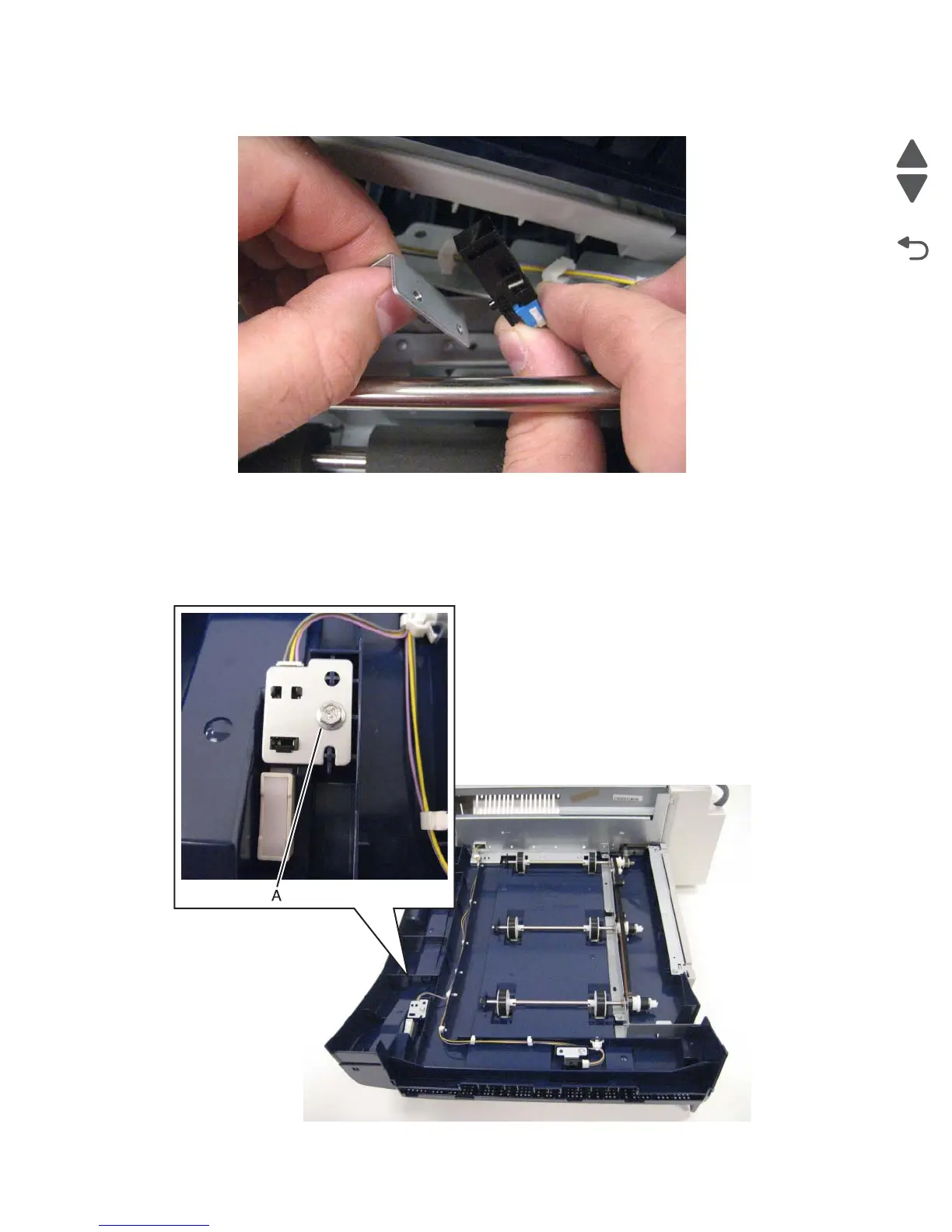

8. Remove the sensor (bridge media exit).
Sensor (bridge top door interlock) removal
1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-232.
2. Place the bridge unit upside down on the work surface.
3. Remove the screws (A) securing the bracket to the machine.
