Repair information 4-143
5058-030

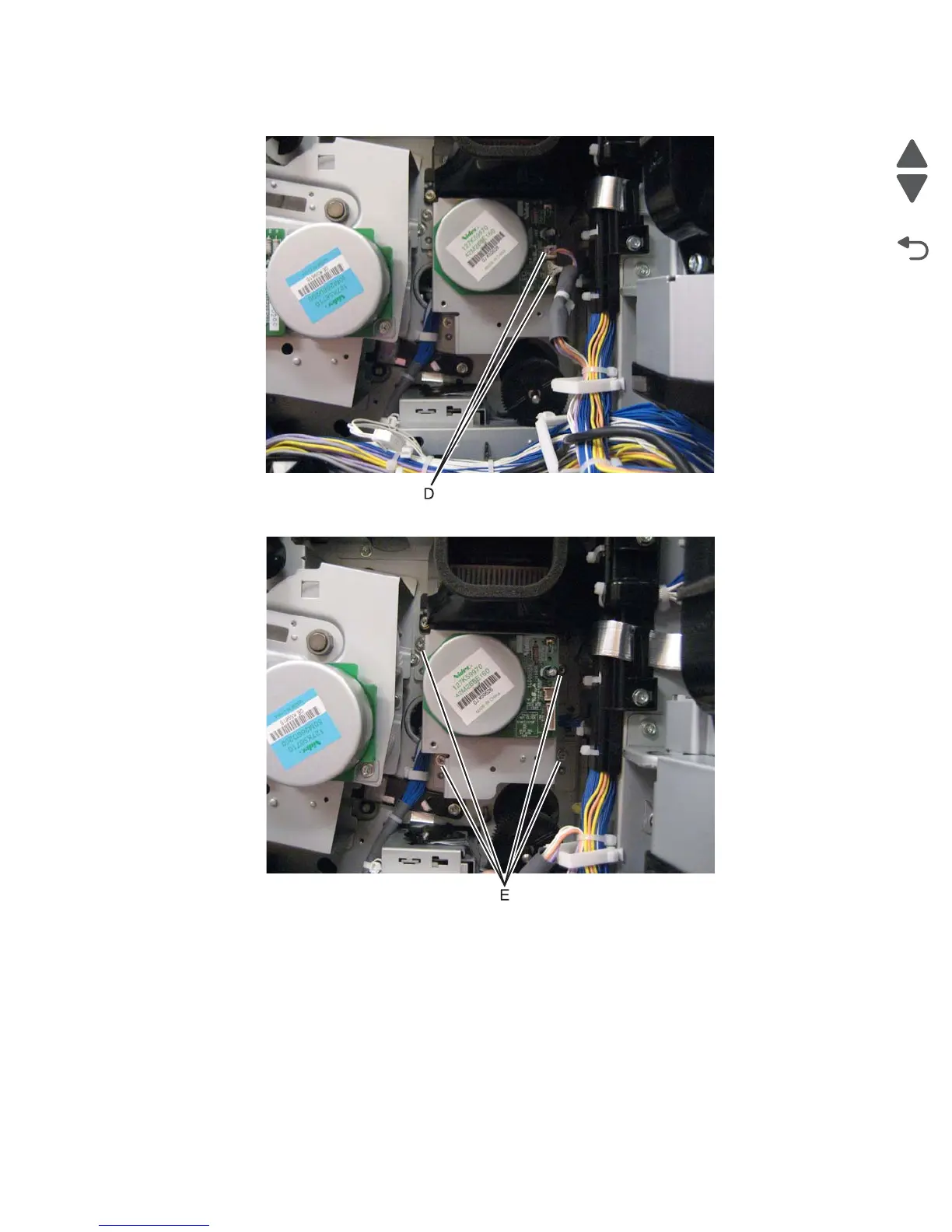

7. Disconnect the two cables (D).
8. Remove the four screws (E) securing the registration drive motor to the machine.
9. Remove the registration drive motor.
Registration/transport roller assembly removal
1. Remove the left rear lower cover. See “Left rear lower cover removal” on page 4-6.
2. Remove the MPF tray feeder. See “MPF tray feeder removal” on page 4-122.
3. Open the printer left duplex door assembly.
4. Remove the e-clip securing the rear plastic support strap to the printer left duplex door assembly.
5. Remove the rear plastic support strap.
6. Rotate the front plastic support strap 90 degrees and remove it from the machine.
