3. Remove the foot cover.

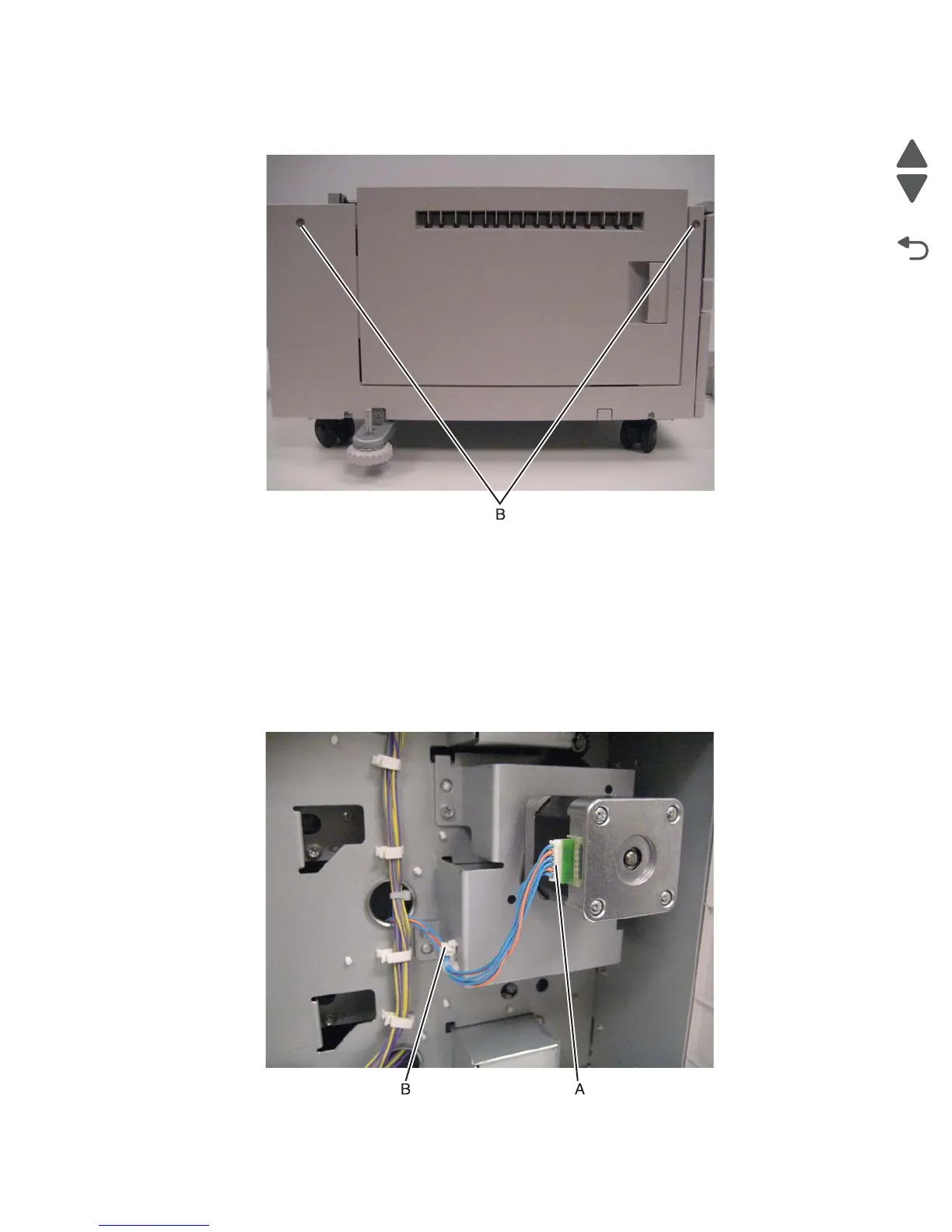

4. Remove the two screws (B).

Note: Opening the tray module left door will help you remove the tray module left cover.

5. Remove the tray module left cover.

Tray module lower transport motor removal

This removal procedure is not applicable to TTM tray modules.

1. Remove the tray module rear cover. See “Tray module rear cover removal” on page 4-211.

2. Disconnect the cable (A).

3. Release the harness from the clamp (B).
