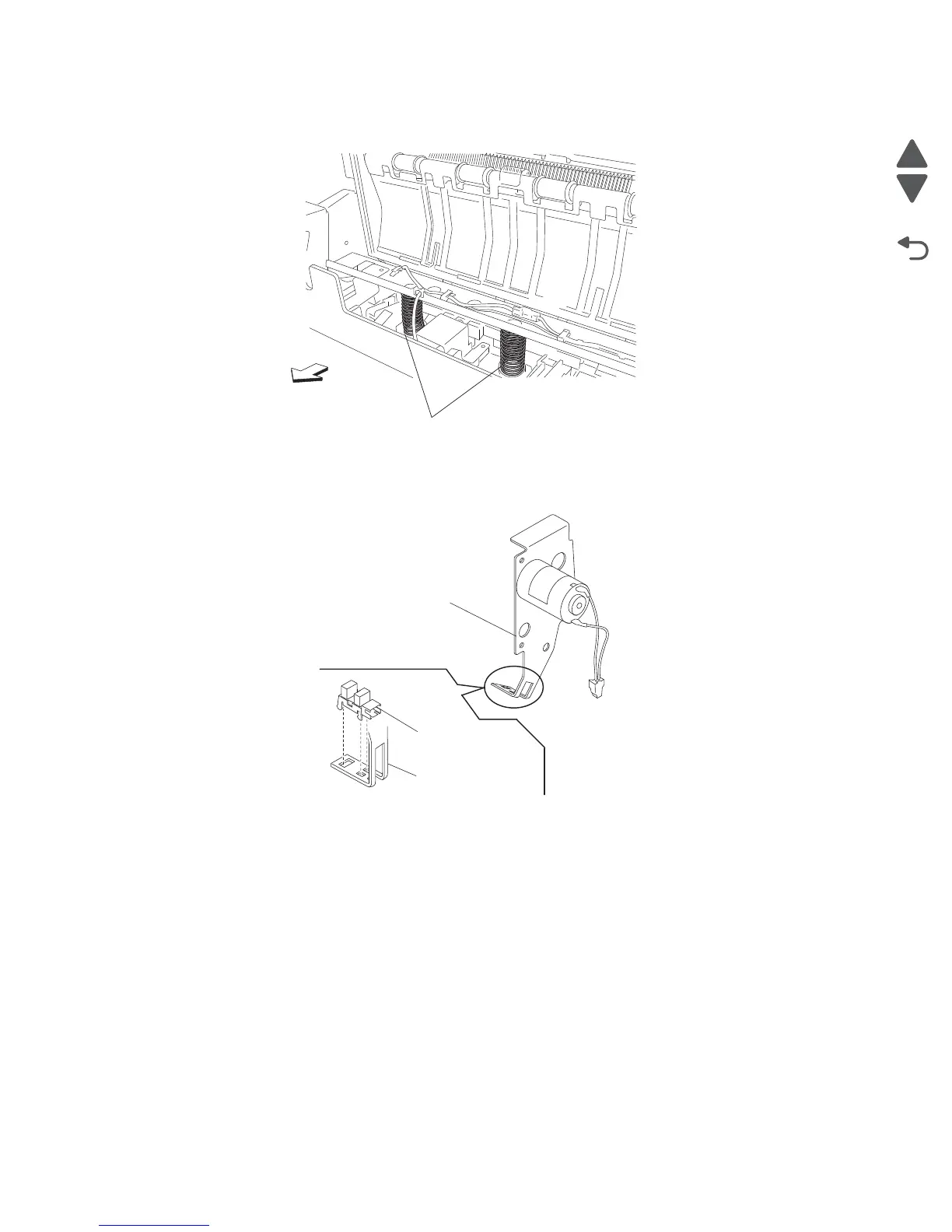

3. Remove the two media eject unit springs attached to the media eject unit assembly by pushing them
downward.
4. Remove the media eject clamp motor assembly. See “Clamp drive motor removal” on page 4-268.
5. Release the hooks of the sensor (media eject clamp HP) (A) from the bracket (B).
6. Remove the sensor (media eject clamp HP) (A).
Sensor (media eject shaft HP) removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
2. Disconnect the connector from the sensor (media eject shaft HP) (A).
3. Rotate the media eject clutch actuator (B) by hand so it clears the sensor (media eject shaft HP) (A).
Right
Springs
B
A
B
