Connector locations 5-41
5058-030
Go Back
Previous
Next

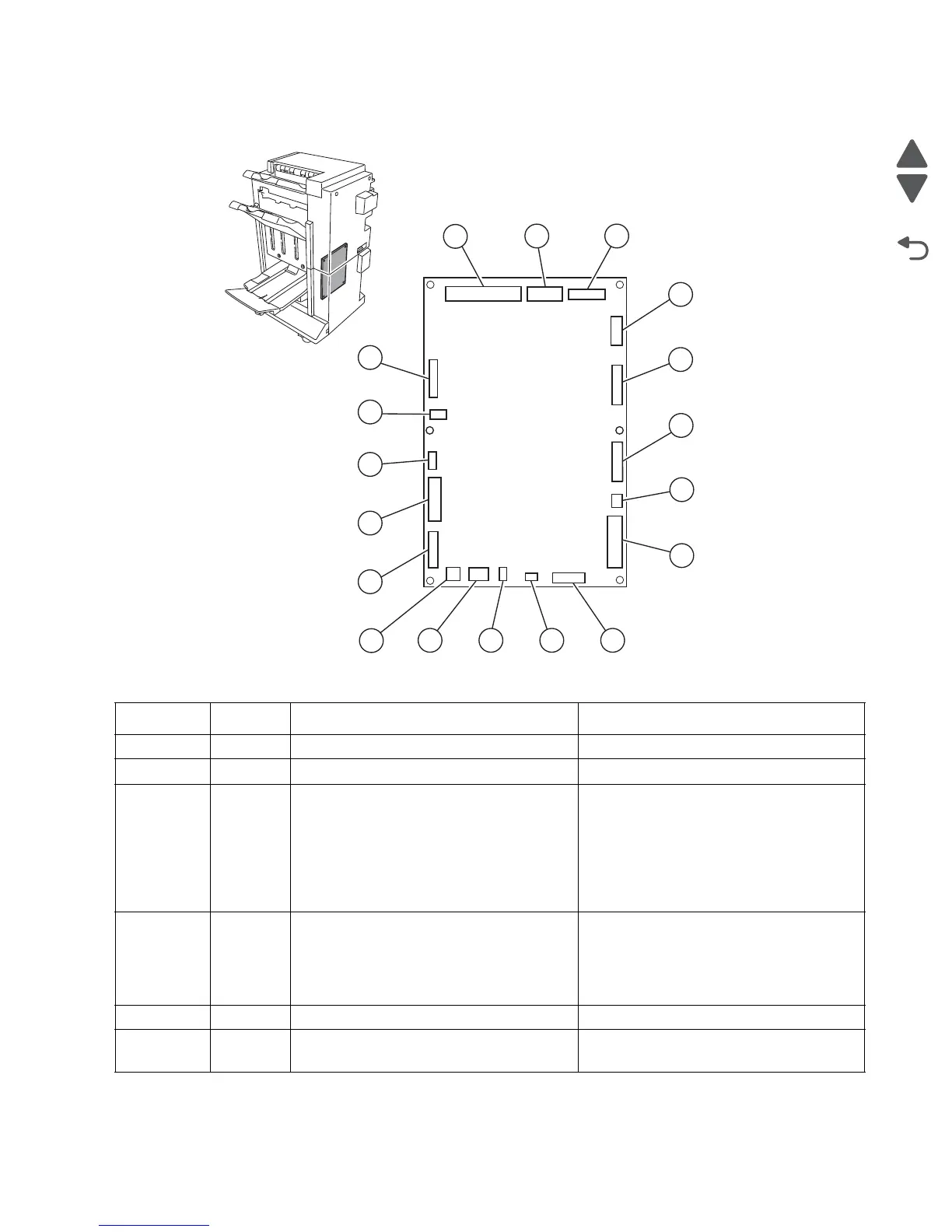

Finisher—controller PCBA
Plug/Jack Callout Plug/jack description Connects to
P/J8300 6 Finisher controller PCBA
P/J8301 7
P/J8302 15 Finisher controller PCBA • Sensor (finisher media entrance)
• Sensor (upper media bin full)
• Sensor (buffer path)
• Sensor (media eject clamp HP)
• Sensor (media eject shaft HP)
• Sensor (stacker bin level R)
• Sensor (stacker bin level encoder)
P/J8304 1 Finisher controller PCBA • Stepper motor
• Diverter solenoid
• Buffer diverter solenoid
• Clamp drive motor
• Media eject motor assembly
P/J8305 17 Finisher controller PCBA Stacker bin lift motor
P/J8306 4 Finisher controller PCBA • Punch carriage shift motor
• Punch unit motor
P/ J8304
1
P/ J8308
2
P/ J8389
3
P/ J8306
4
P/ J8307
5
P/ J8300
6
P/ J8301
7
P/ J8310
8
P/ J8316
910
P/ J8314
11
P/ J8313
12
P/ J8315
13
P/ J8317
14
P/ J8311
15
P/ J8302
16
P/ J8376
17
P/ J8305
18
P/ J8309
