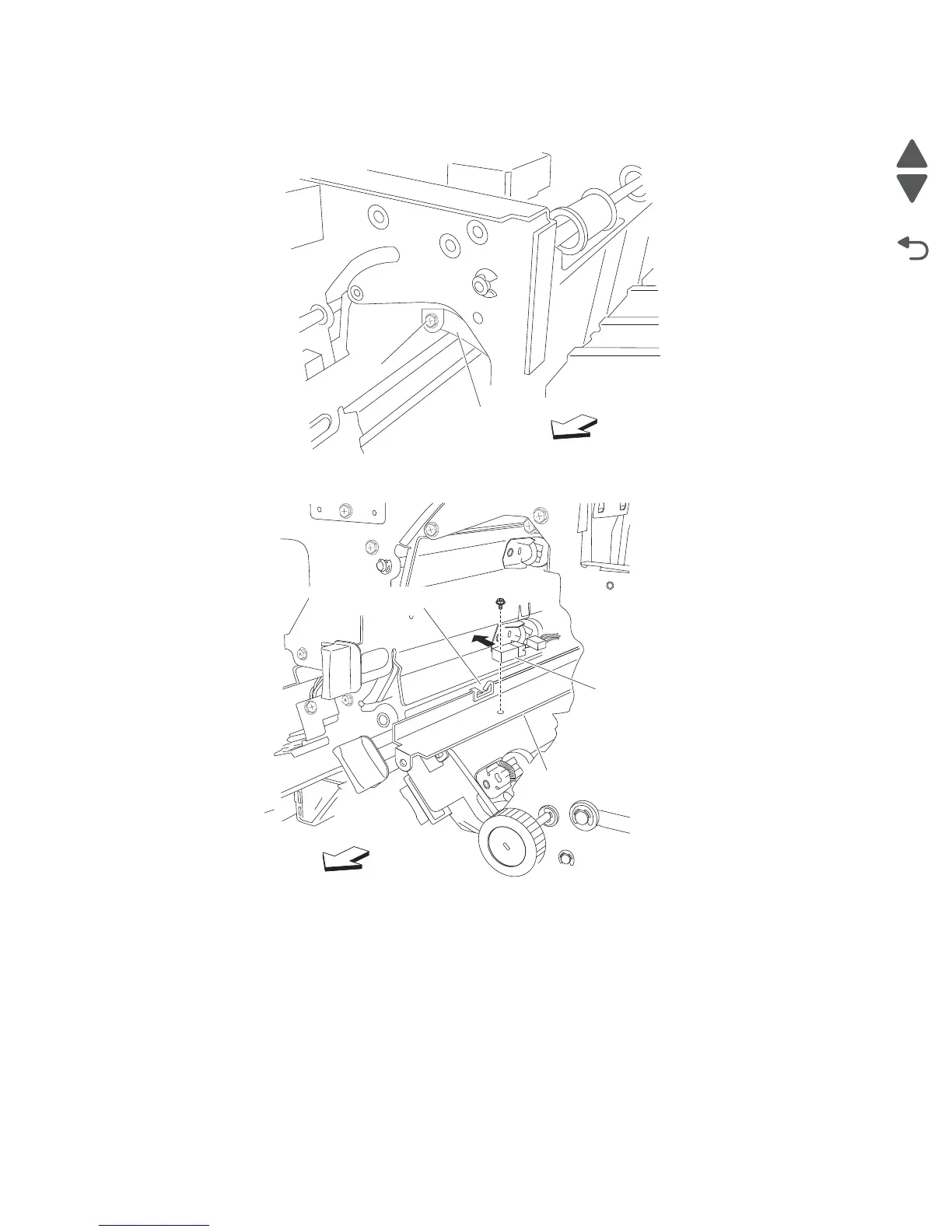

5. Move the bracket (B) frontward again, and remove the screw securing the sensor (upper media bin full) (C)
to the bracket.
6. Remove the sensor (upper media bin full) (C).
7. Disconnect the connector from the sensor (upper media bin full) (C).
Sensor (upper media exit) removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
4. Remove the top cover. See “Top cover removal” on page 4-351.
Front
C
Harness clamp
A
Front
B
A
