Lexmark C950 - Assembly 65: Finisher-Media Eject

7-68 Service Manual
5058-030
Go Back
Previous
Next

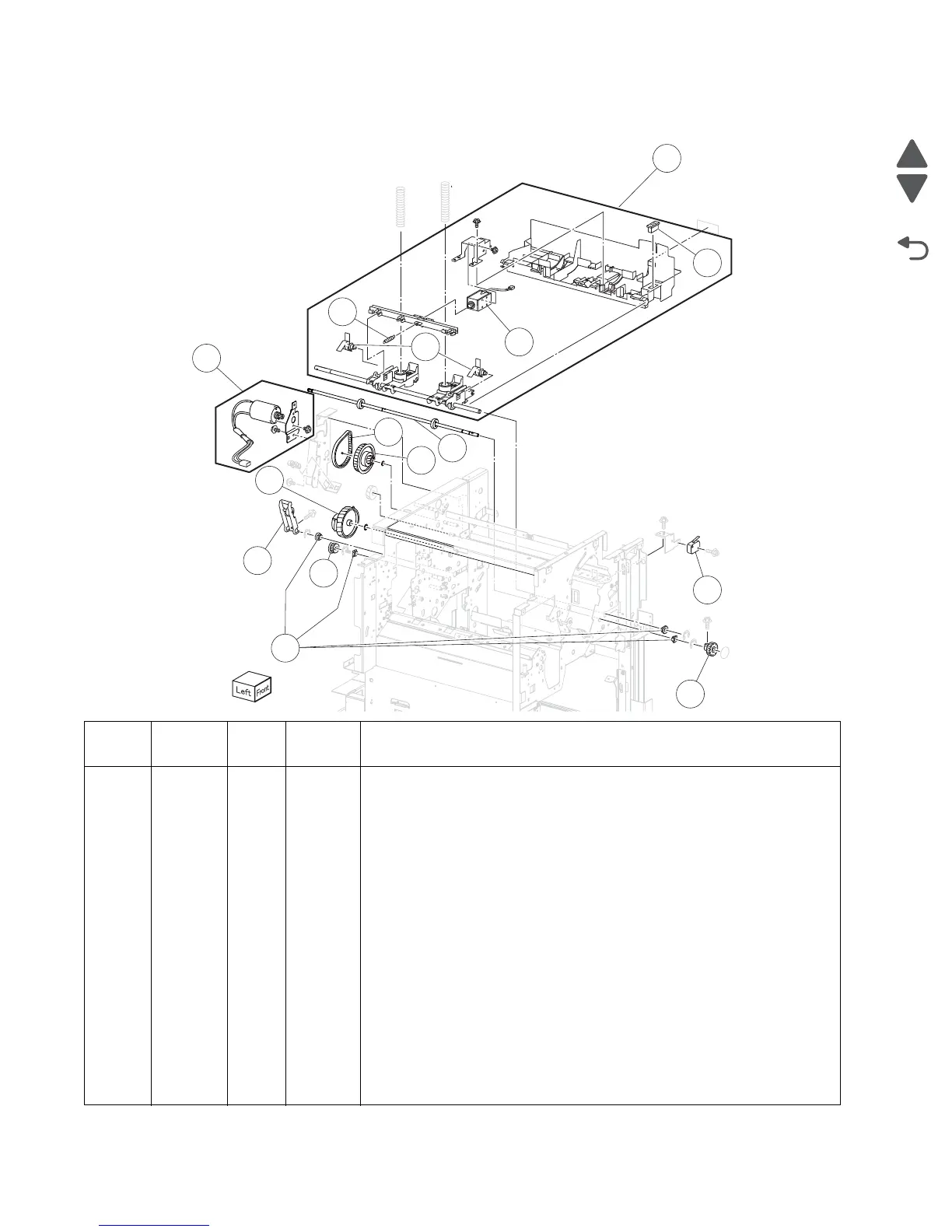

Assembly 65: Finisher—media eject
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
65-1 40X7424 11Media eject unit frame
2 40X0824 11Magnetic catch
3 40X0882 11Eject cover interlock switch
4 40X7746 11Knob
5 40X0888 51Bushing
6 40X6868 21Gear 23T
7 40X0877 11Eject clamp lever assembly
8 40X6869 11Cam pulley
9 40X6870 11Drive pulley
10 40X7362 11Paddle shaft
11 40X7425 11Clamp drive belt
12 40X7426 11Clamp drive motor
13 40X4147 11Spring
14 40X0874 11Sub paddle
15 40X4120 11Sub paddle solenoid
1
13
14
15
2
9
11
10
8
6
7
4
3
12
5
