5-6 Service Manual

5058-030

Go Back

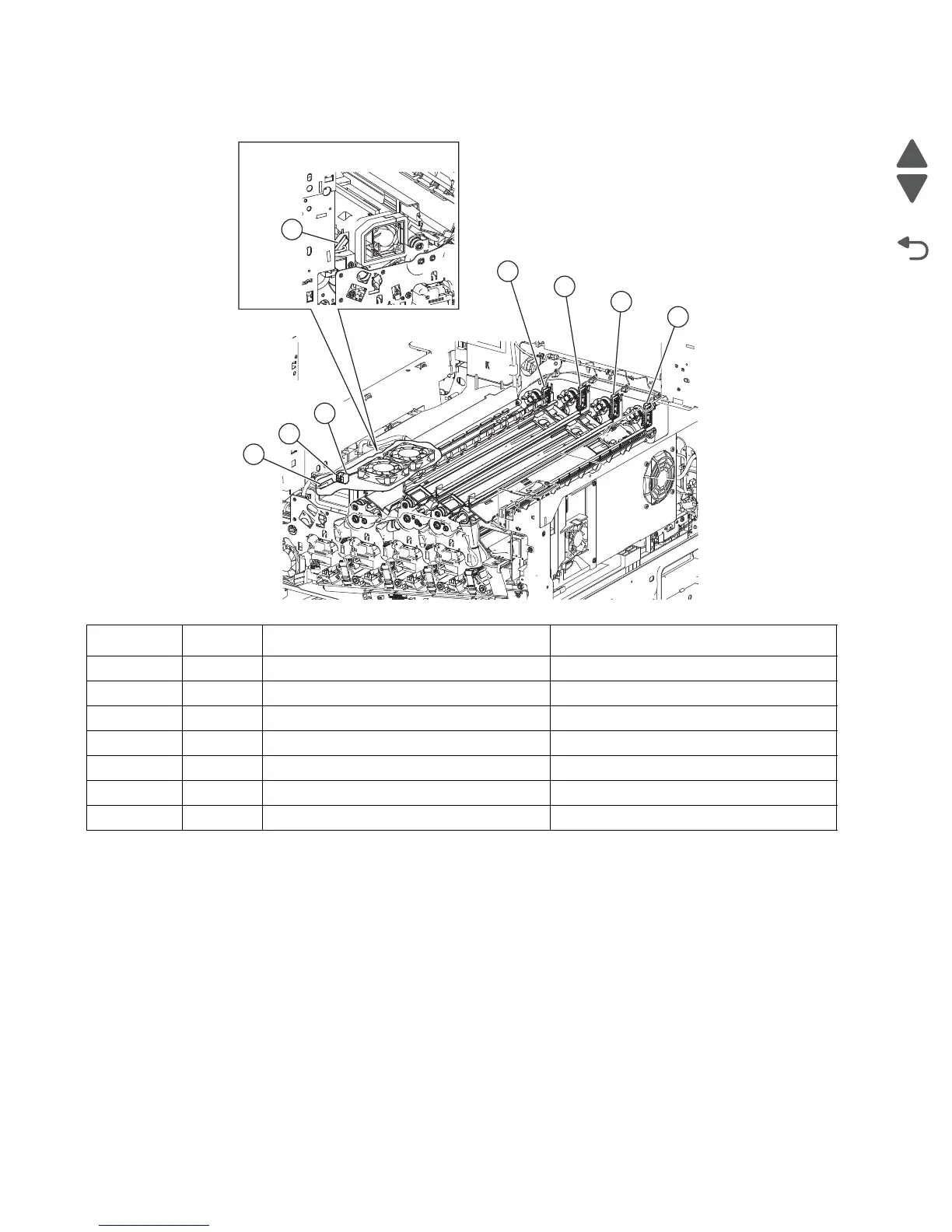

Toner smart chip, cooling fan

Plug/Jack Callout Plug/jack description Connects to

P/J120 4 Toner smart chip PCB (Y) Upper engine PCBA

P/J121 3 Toner smart chip PCB (M) Upper engine PCBA

P/J122 2 Toner smart chip PCB (C) Upper engine PCBA

P/J123 1 Toner smart chip PCB (K) Upper engine PCBA

P/J232 7 N/A N/A

P/J236 6 Front upper cooling fan Upper engine PCBA

P/J619 5 Front upper cooling fan Upper engine PCBA

P/ J236 6

P/ J123

P/ J122

P/ J121

P/ J120

P/ J232

P/ J236

P/ J619
