Lexmark C950 - Sensor (HCF Top Door Interlock) Removal

Repair information 4-383
5058-030
Go Back
Previous
Next

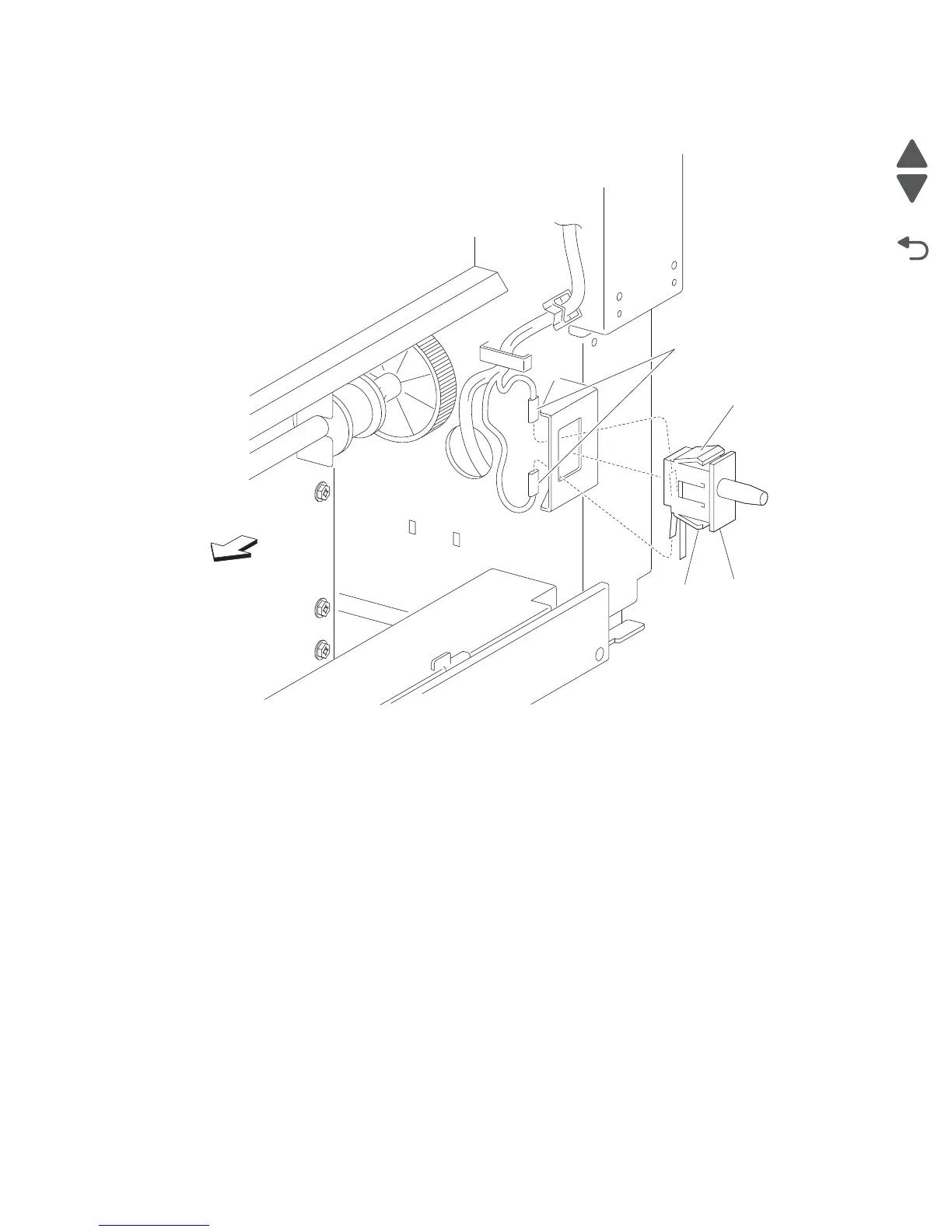

3. Release the hooks securing the sensor (HCF unit docking interlock) (A) to the unit.
4. Remove the sensor (HCF unit docking interlock) (A).
Sensor (HCF top door interlock) removal
1. Remove the HCF unit to the printer.
2. Open the HCF top door assembly.
3. Disconnect the connector from the sensor (HCF top door interlock) (A).
4. Remove the two screws securing the bracket (B) to the unit.
5. Remove the bracket (B).
Hook
A
Front
Hook
Connectors
