Waste toner sensor guide removal
1. Remove the printer right side cover. See “Printer right cover removal” on page 4-11.

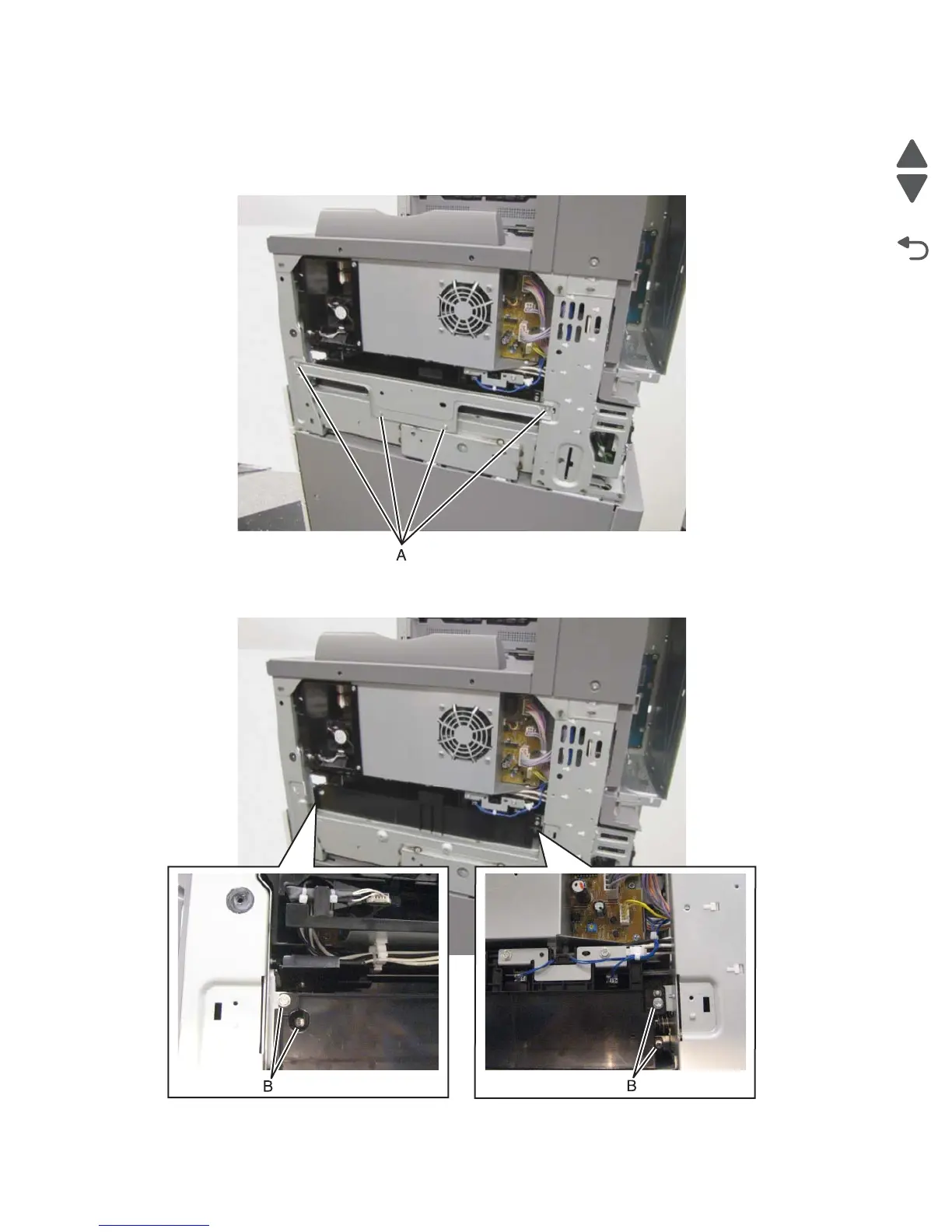

2. Remove the four screws (A) securing the bracket to the machine.
3. Remove the bracket.
4. Remove the four screws (B) securing the waste toner sensor guide to the machine.
5. Disconnect the two cables (C) from the waste toner sensor guide.
