Repair information 4-189
5058-030

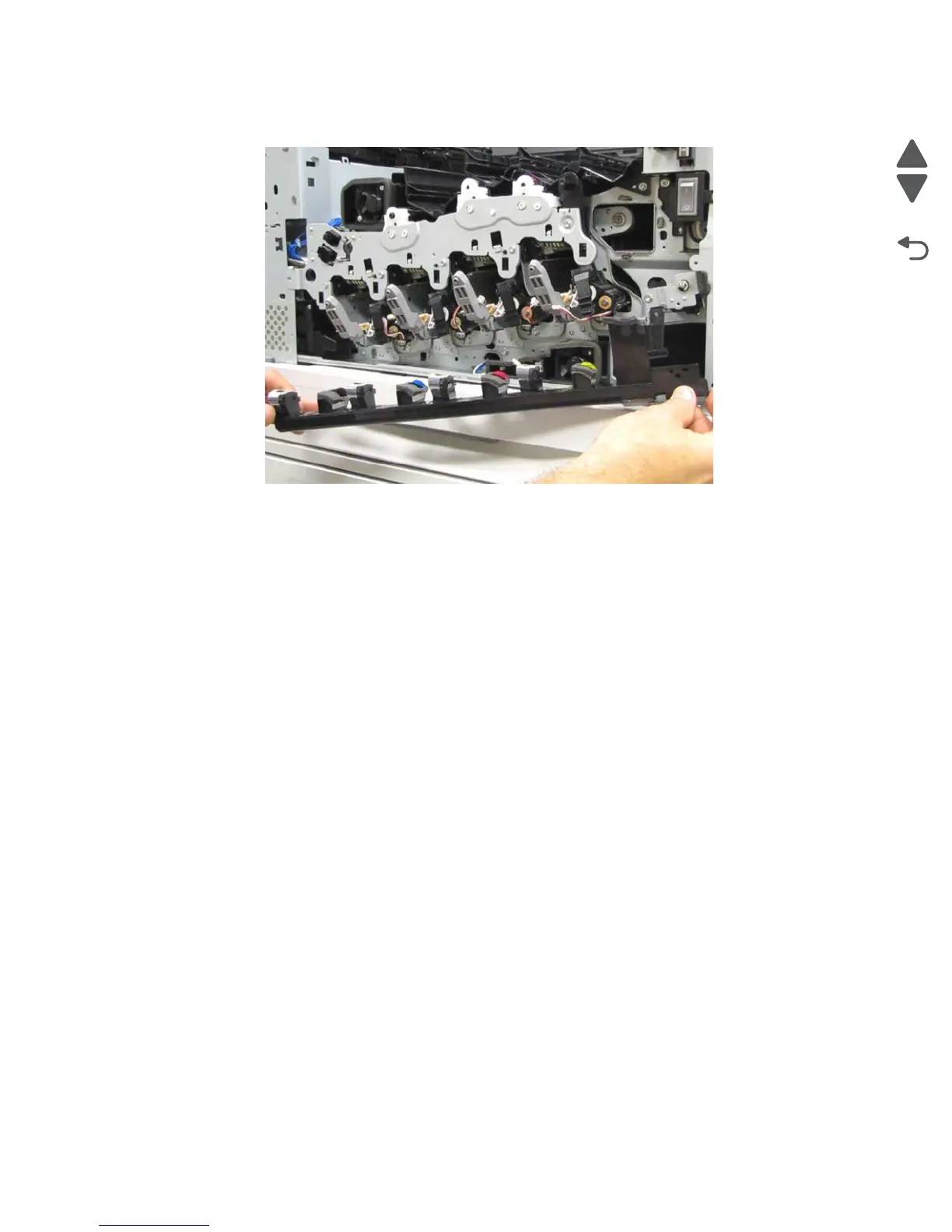

13. Remove the waste toner auger chute.
Re-installation warning: When replacing the waste toner auger chute, ensure that the four plastic gates on the
four toner add chutes are in the closed position or damage will occur to the foam gaskets on the waste toner
auger chute.
Re-installation warning: When replacing the waste toner auger chute, ensure that the four developer housing
harnesses are properly routed and do not become pinched.
Re-installation warning: After the waste toner auger chute has bee re-installed, ensure that the four plastic
gates are moved to the open position or the inner cover will not properly re-install.
