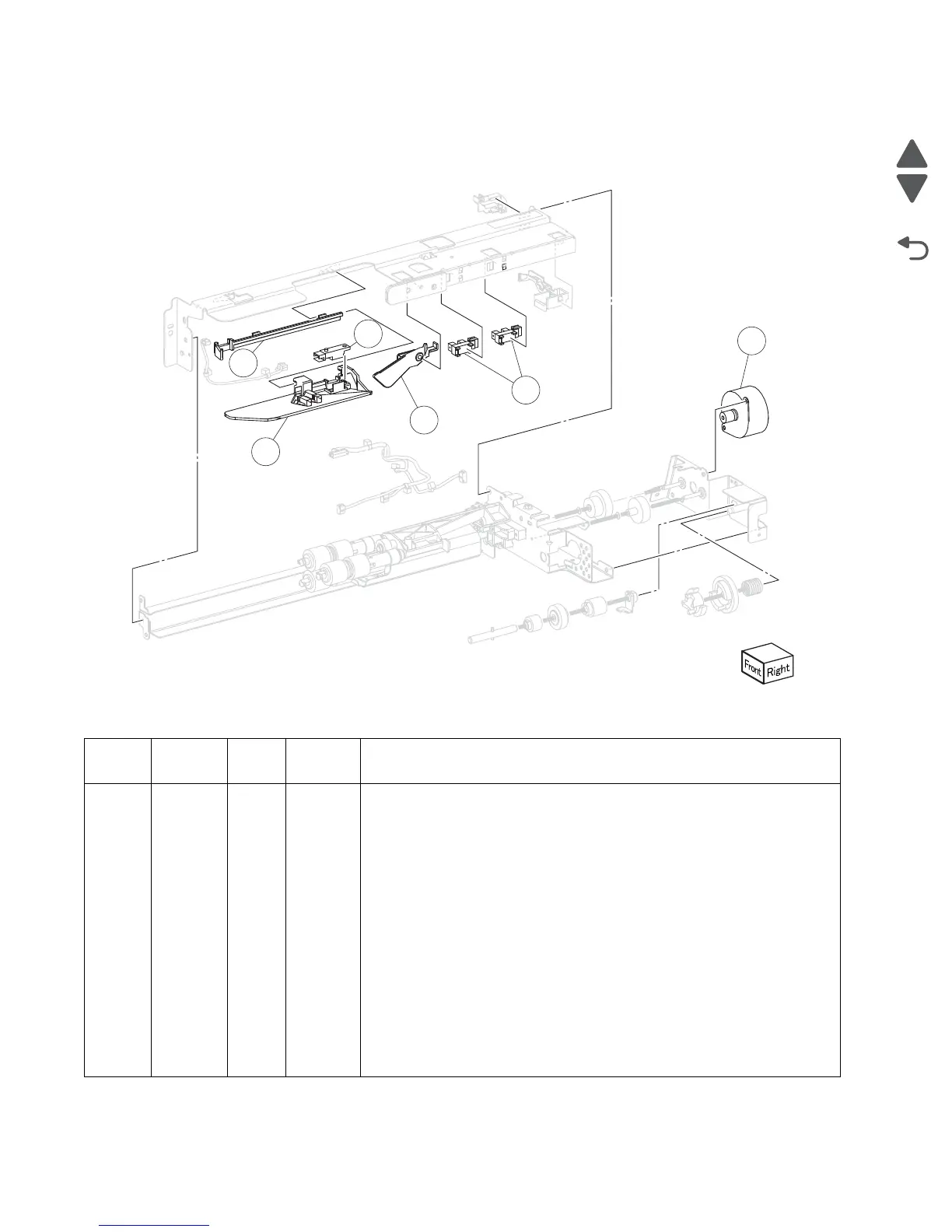

Assembly 21: Media feed 3
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
21-1 40X6658 81Media feed lift motor
2 40X0588 11Tray 1 media level sensor
2 40X0588 11Tray 1 media out sensor
2 40X0588 11Tray 2 media level sensor
2 40X0588 11Tray 2 media out sensor
2 40X0588 11Tray 3 media level sensor
2 40X0588 11Tray 3 media out sensor
2 40X0588 11Tray 4 media level sensor
2 40X0588 11Tray 4 media out sensor
3 40X0587 81Media out actuator
4 40X0589 21Tray 1 pre-feed sensor
5 40X6659 81Feeder slide guide
6 40X6773 81Feeder unit slide rail
