4-200 Service Manual
5058-030
Sensor (tray module feedout) removal
This removal procedure applies to all three tray modules.
1. Open the left door.

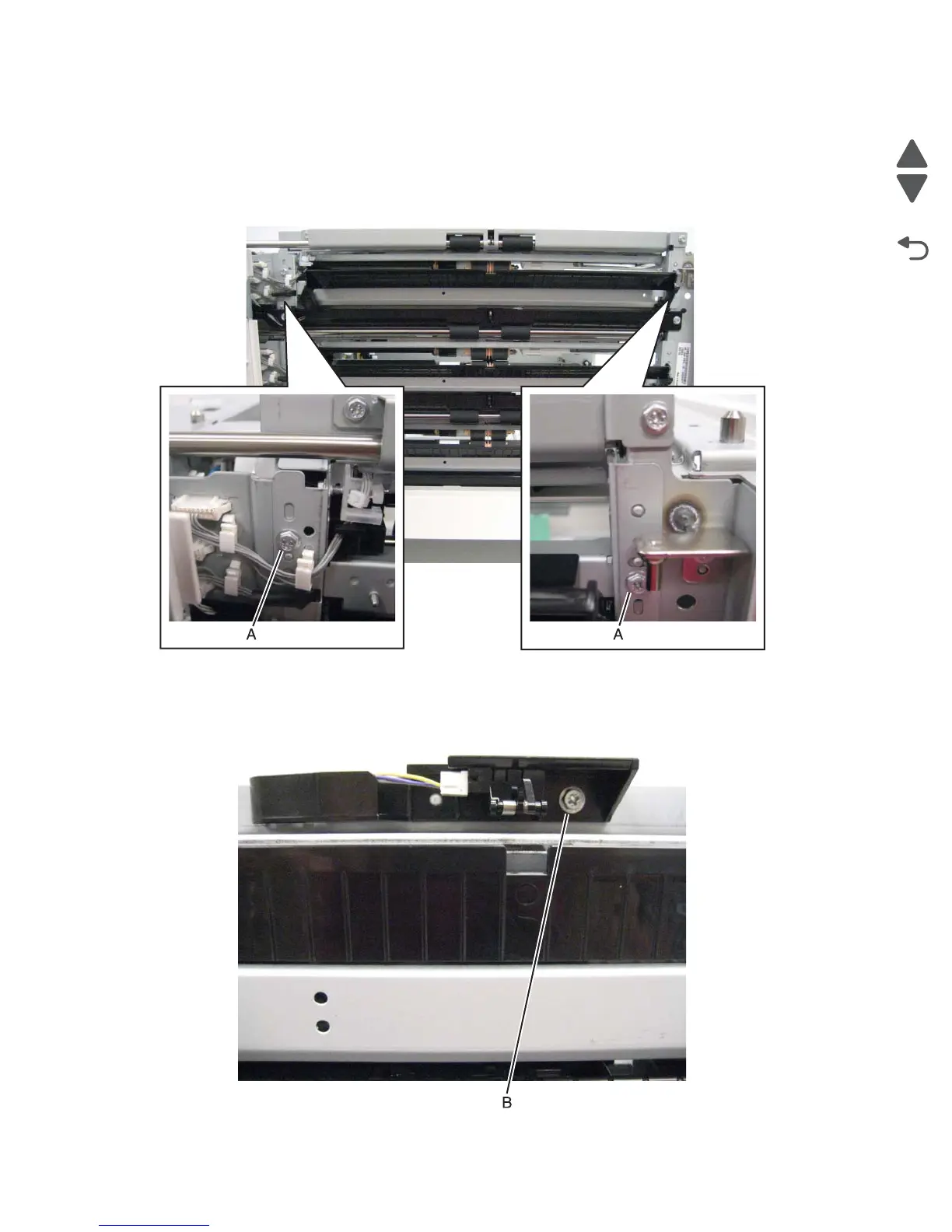

2. Remove the two screws (A) securing the metal guide to the machine.
3. Remove the metal guide.
4. Remove the tray module upper media transport roller. See the “Tray module transport rollers removal”
on page 4-213.
5. Remove the screw (B) securing the plastic bracket to the machine.
