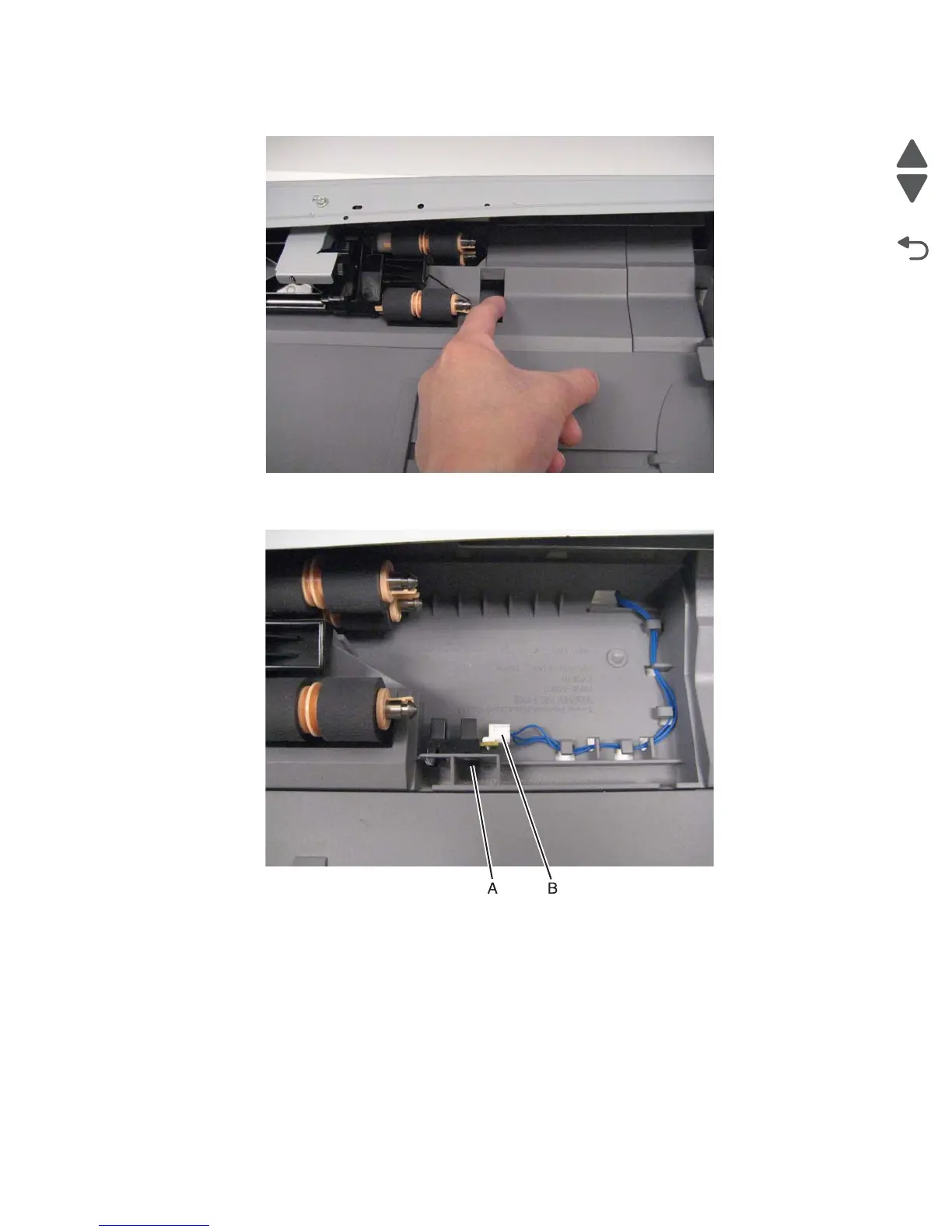

4. Gently detach the access cover.
5. Release the hooks (A) securing the sensor (MPF media present) to the MPF tray feeder.
6. Disconnect the cable (B) from the sensor (MPF media present).
7. Remove the sensor (MPF media present).
Reinstallation note: Ensure that the access cover is properly reinstalled so that it is flush with the machine or
media jamming might occur.
