Lexmark C950 - Controller Cooling Fan Removal

4-40 Service Manual
5058-030
Go Back
Previous
Next
Re-installation note: Be sure to attach the rubber sleeves (C) properly to prevent toner spillage.
Controller cooling fan removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.

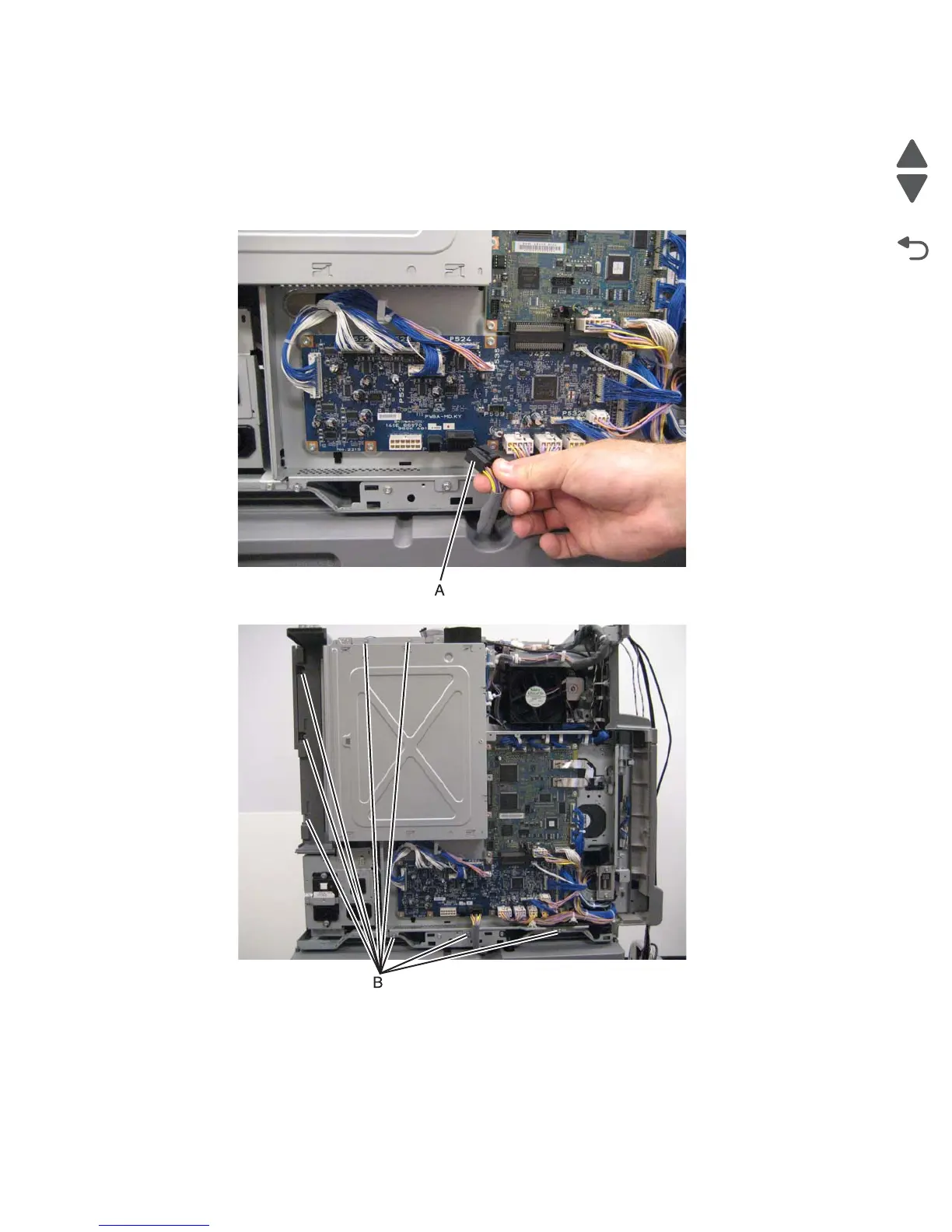

2. Disconnect the input option cable (A).
3. Remove the eight screws (B) securing the PCBA door to the machine.
