Repair information 4-41
5058-030
Go Back
Previous
Next

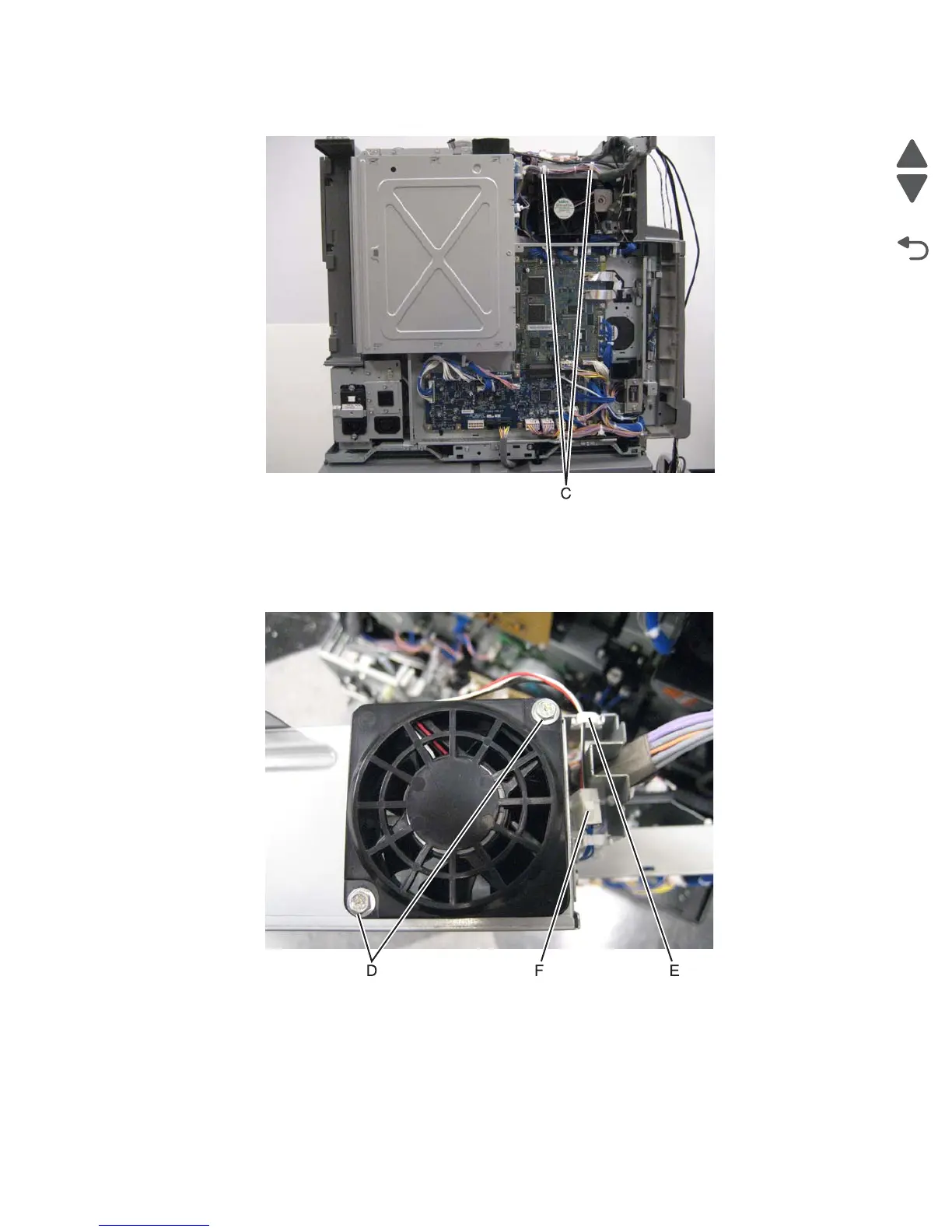

4. Release the two clamps (C) to release the harness.
5. Swing the PCBA door open.
6. Remove the two screws (D) securing the controller cooling fan.
7. Remove the controller cooling fan from the machine.
8. Disconnect the harness from the clamp (E).
9. Disconnect the cable (F) from the controller cooling fan.
