Lexmark C950 - Assembly 33: TTM Drive 1

7-34 Service Manual
5058-030
Go Back
Previous
Next

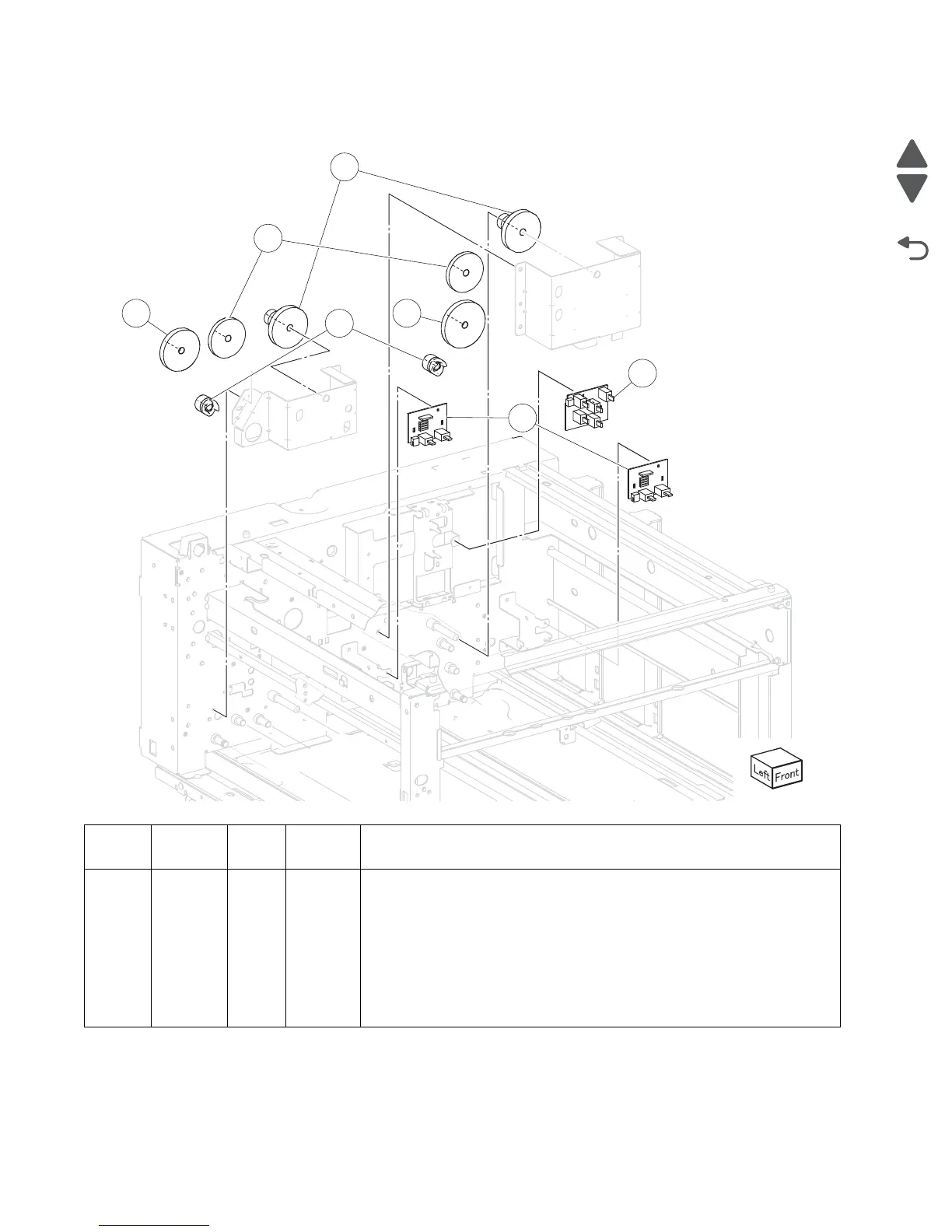

Assembly 33: TTM drive 1
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
33-1 40X7350 21TTM gear 17T/50T
2 40X7351 21TTM gear 16T/48T
3 40X7352 11TTM gear 57T
4 40X7533 61Media size switch PCB
5 40X7349 21Sensor (TTM media size)
6 40X7353 21Coupler
7 40X7354 1 TTM gear 51T
1
3
5
7
2
4
6
