Lexmark C950 Service Manual

Connector locations 5-11
5058-030
Go Back
Previous
Next

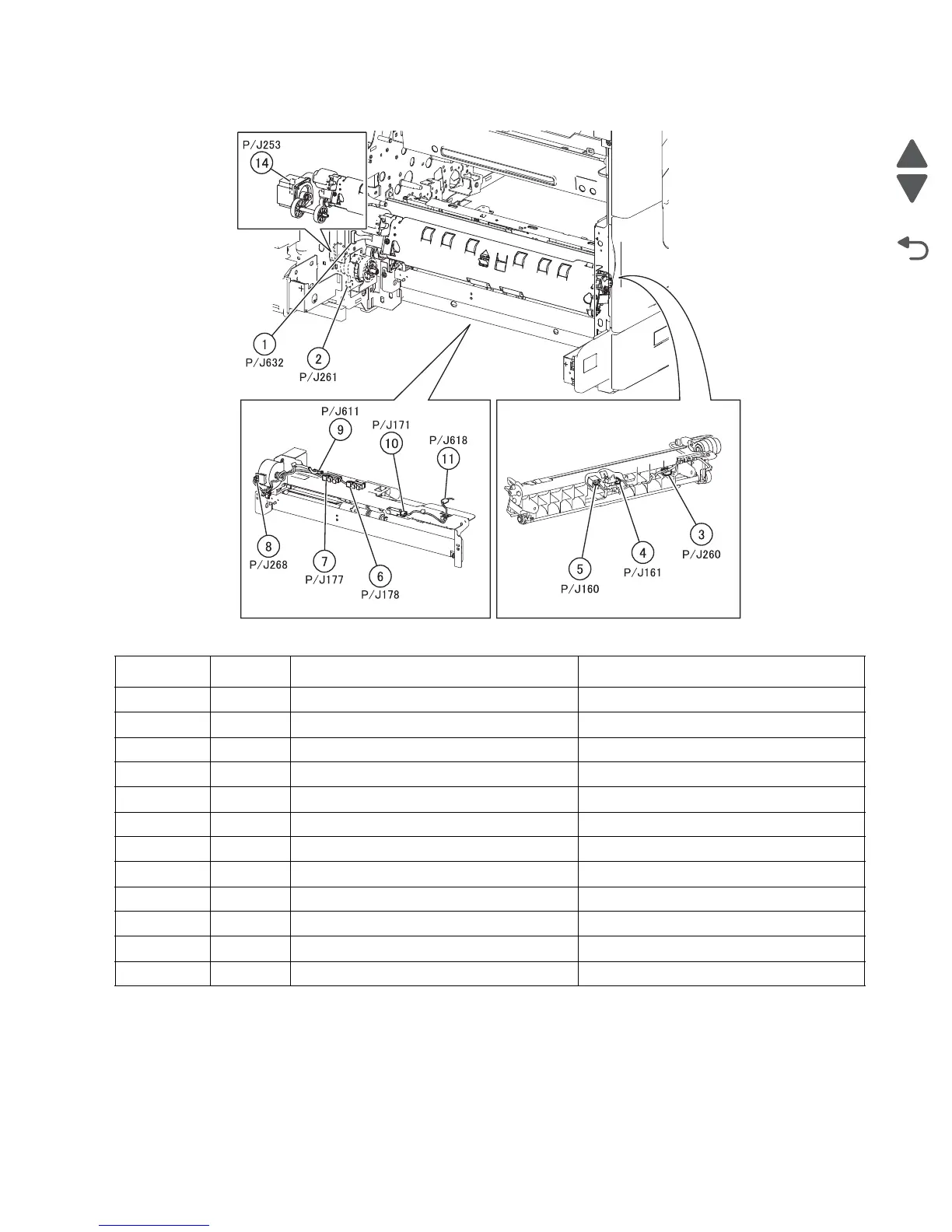

Registration
Plug/Jack Callout Plug/jack description Connects to
P/J160 5 Registration/transport roller assembly Lower engine PCBA
P/J161 4 Registration/transport roller assembly Lower engine PCBA
P/J171 10 Tray 1 pre-feed sensor Lower engine PCBA
P/J177 7 Tray 1 media level sensor Lower engine PCBA
P/J178 6 Tray 1 media out sensor Lower engine PCBA
P/J253 14 Media transport/MPF drive motor Lower engine PCBA
P/J260 3 Registration/transport roller assembly Lower engine PCBA
P/J261 2 N/A N/A
P/J268 8 Media feed lift motor Lower engine PCBA
P/J611 9 Tray 1 media level sensor Lower engine PCBA
P/J618 11 Tray 1 pre-feed sensor Lower engine PCBA
P/J632 1 Registration/transport roller assembly Lower engine PCBA

Lexmark C950 Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Processor Speed	1.2 GHz
Connectivity	Ethernet, USB
Print Technology	Laser
Print Speed	50 ppm
Monthly Duty Cycle	300000 pages
Recommended Monthly Page Volume	5, 000 - 33, 000 pages
Memory	1024 MB
Hard Drive	Optional
Output Capacity	500 sheets
Interface	USB 2.0
Media Type	Plain paper, Card stock, Labels, Envelopes, Transparencies
Total Media Capacity	5140 sheets
Media Sizes	Letter, Legal, A4, A5, Executive, Folio, Statement
Operating Systems Supported	Windows, Mac, Linux
