Lexmark C950 - Sensor (Tray 1 Pre-Feed) Removal

Repair information 4-157
5058-030
Go Back
Previous
Next

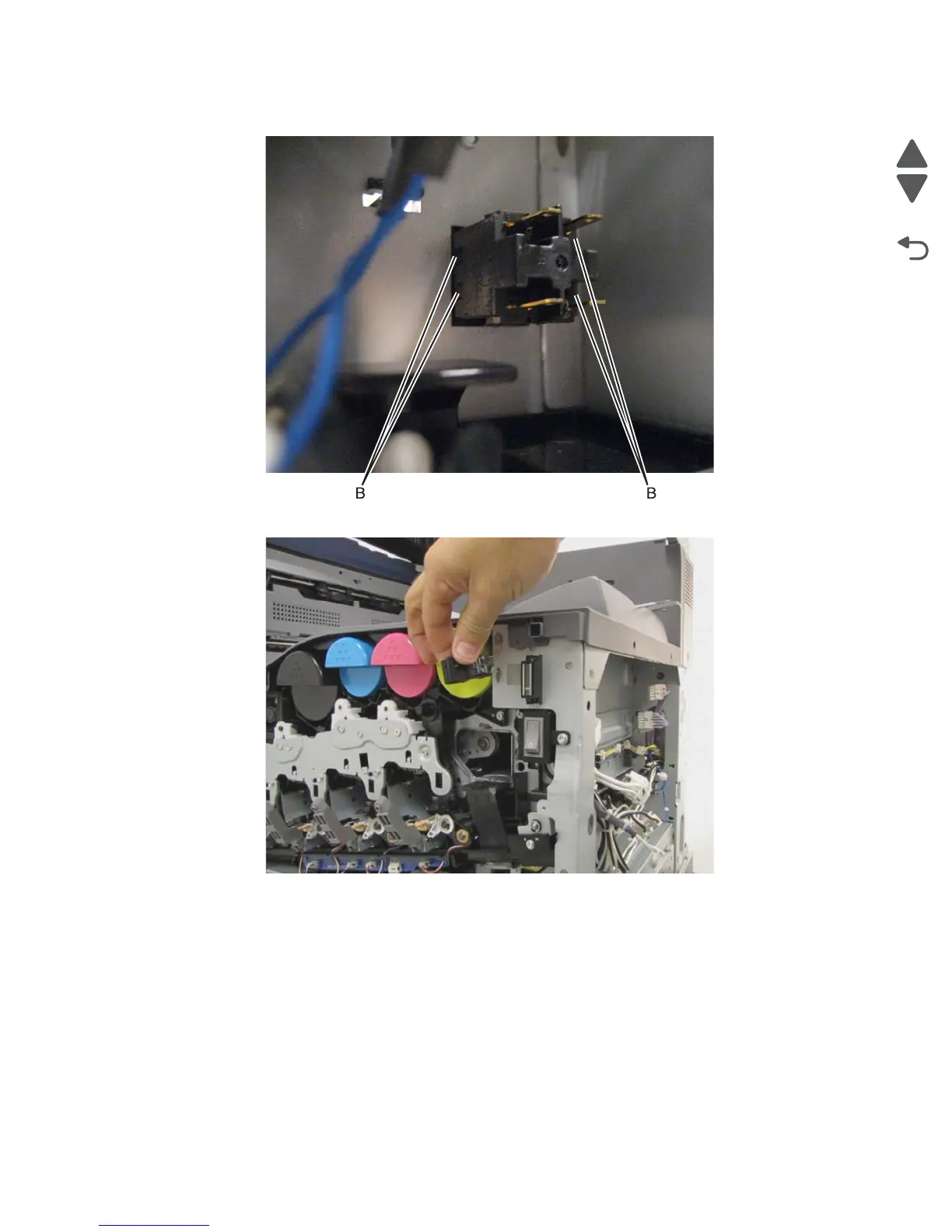

5. Release the four tabs (B) securing the sensor (printer right front door interlock) to the machine.
6. Remove the sensor (printer right front door interlock).
Sensor (tray 1 pre-feed) removal
1. Remove the feeder slide guide. See “Feeder slide guide removal” on page 4-71.
2. Release the hook (A) securing the sensor (printer tray 1 prefeed) to the assembly.
