Lexmark C950 Service Manual

Connector locations 5-19
5058-030
Go Back
Previous
Next

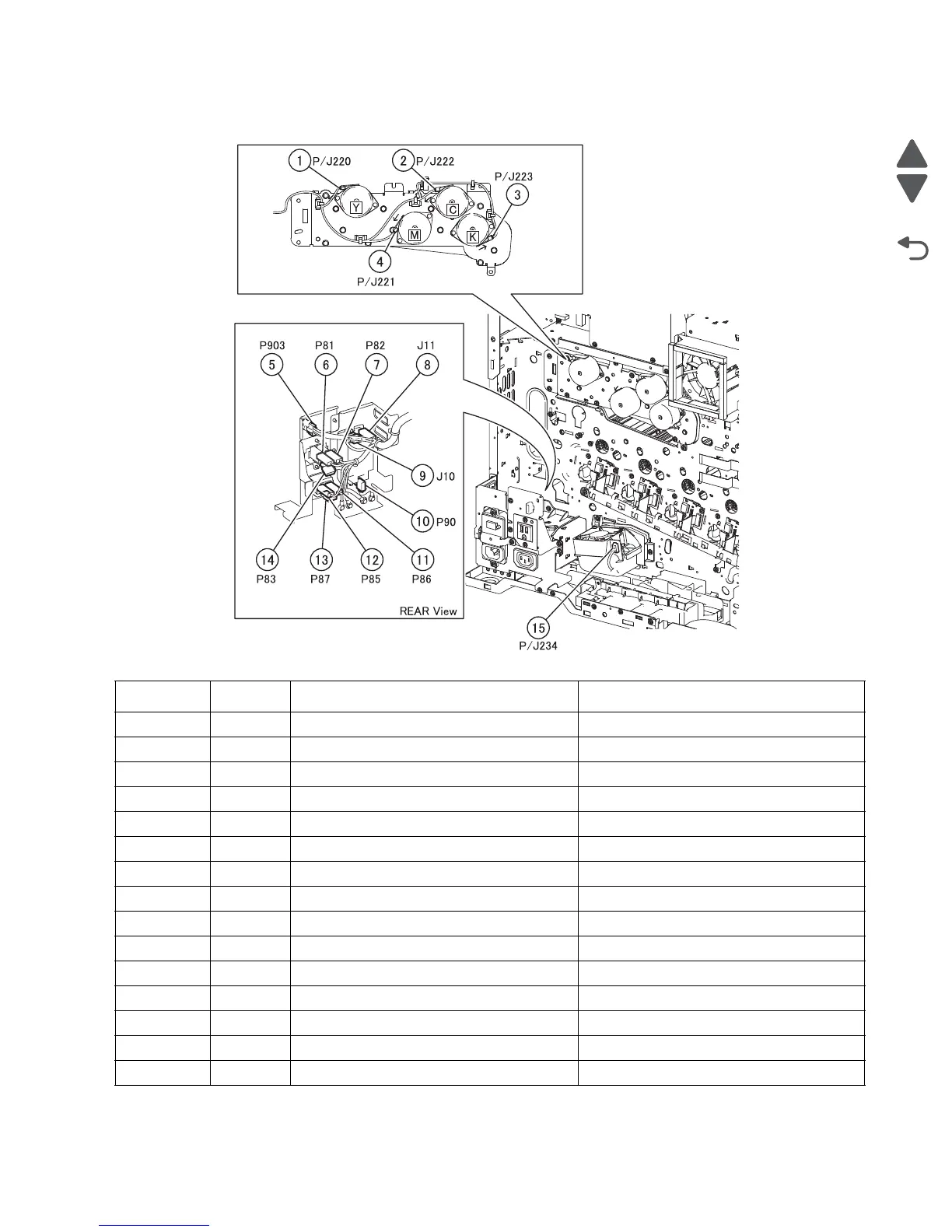

Toner dispense motor (Y,M,C,K), GFI interface
Plug/Jack Callout Plug/jack description Connects to
J10 9 Main power GFI interface LVPS PCBA
J11 8 Main power GFI interface LVPS PCBA
P81 6 Main power GFI interface LVPS PCBA
P82 7 Main power GFI interface LVPS PCBA
P83 14 Main power GFI interface LVPS PCBA
P85 12 Main power GFI interface LVPS PCBA
P86 11 Main power GFI interface LVPS PCBA
P87 13 Main power GFI interface LVPS PCBA
P90 10 Main power GFI interface GND
P/J220 1 Toner dispense motor Lower engine PCBA
P/J221 4 Toner dispense motor Lower engine PCBA
P/J222 2 Toner dispense motor Lower engine PCBA
P/J223 3 Toner dispense motor Lower engine PCBA
P/J234 15 PC/developer drive motor cooling fan Upper engine PCBA
P903 5

Lexmark C950 Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Processor Speed	1.2 GHz
Connectivity	Ethernet, USB
Print Technology	Laser
Print Speed	50 ppm
Monthly Duty Cycle	300000 pages
Recommended Monthly Page Volume	5, 000 - 33, 000 pages
Memory	1024 MB
Hard Drive	Optional
Output Capacity	500 sheets
Interface	USB 2.0
Media Type	Plain paper, Card stock, Labels, Envelopes, Transparencies
Total Media Capacity	5140 sheets
Media Sizes	Letter, Legal, A4, A5, Executive, Folio, Statement
Operating Systems Supported	Windows, Mac, Linux
