Lexmark C950 - Transfer Roll HVPS PCBA Removal

Repair information 4-175
5058-030
Go Back
Previous
Next

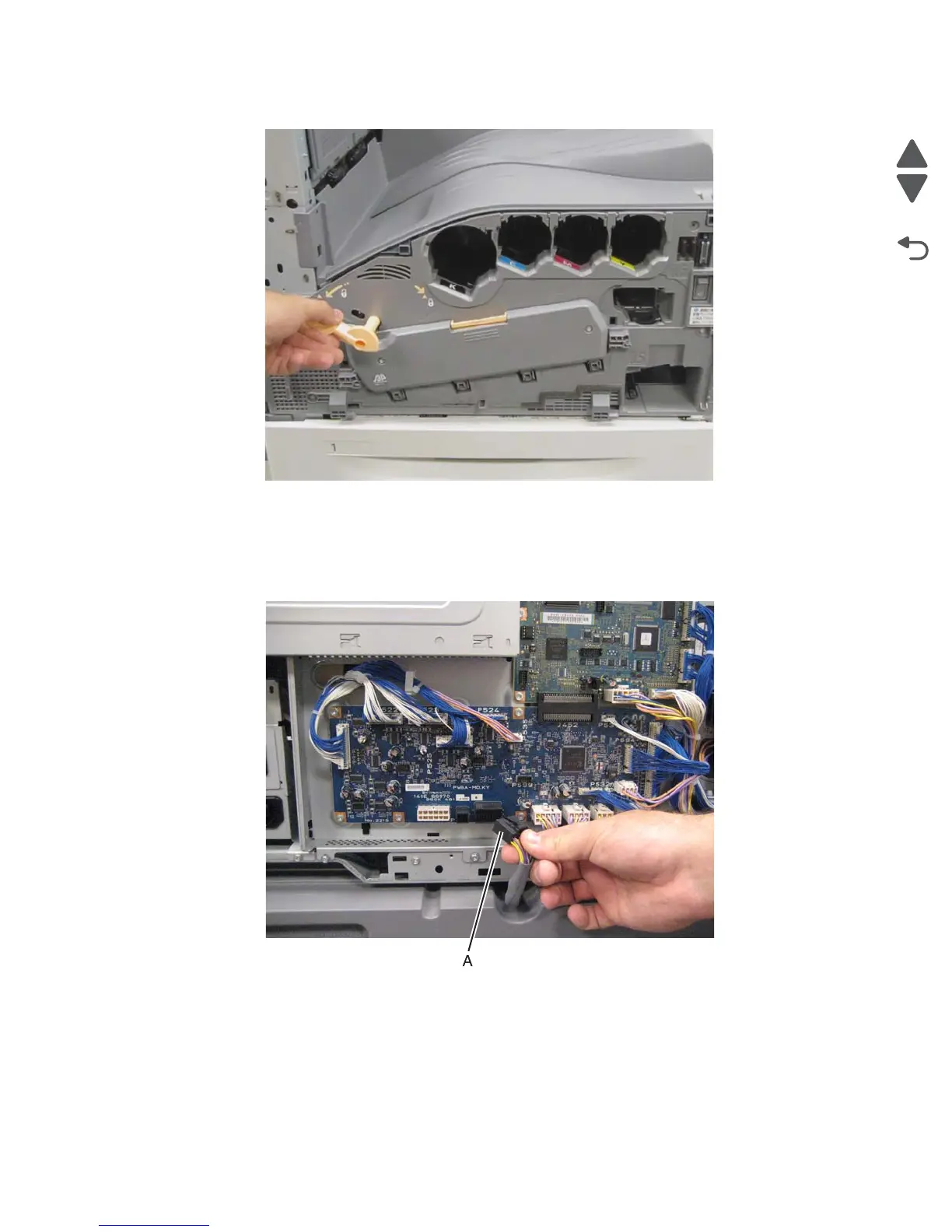

4. Remove the transfer belt lever.
Transfer roll HVPS PCBA removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
2. Disconnect the input option cable (A).
