Repair information 4-209
5058-030
Go Back
Previous
Next

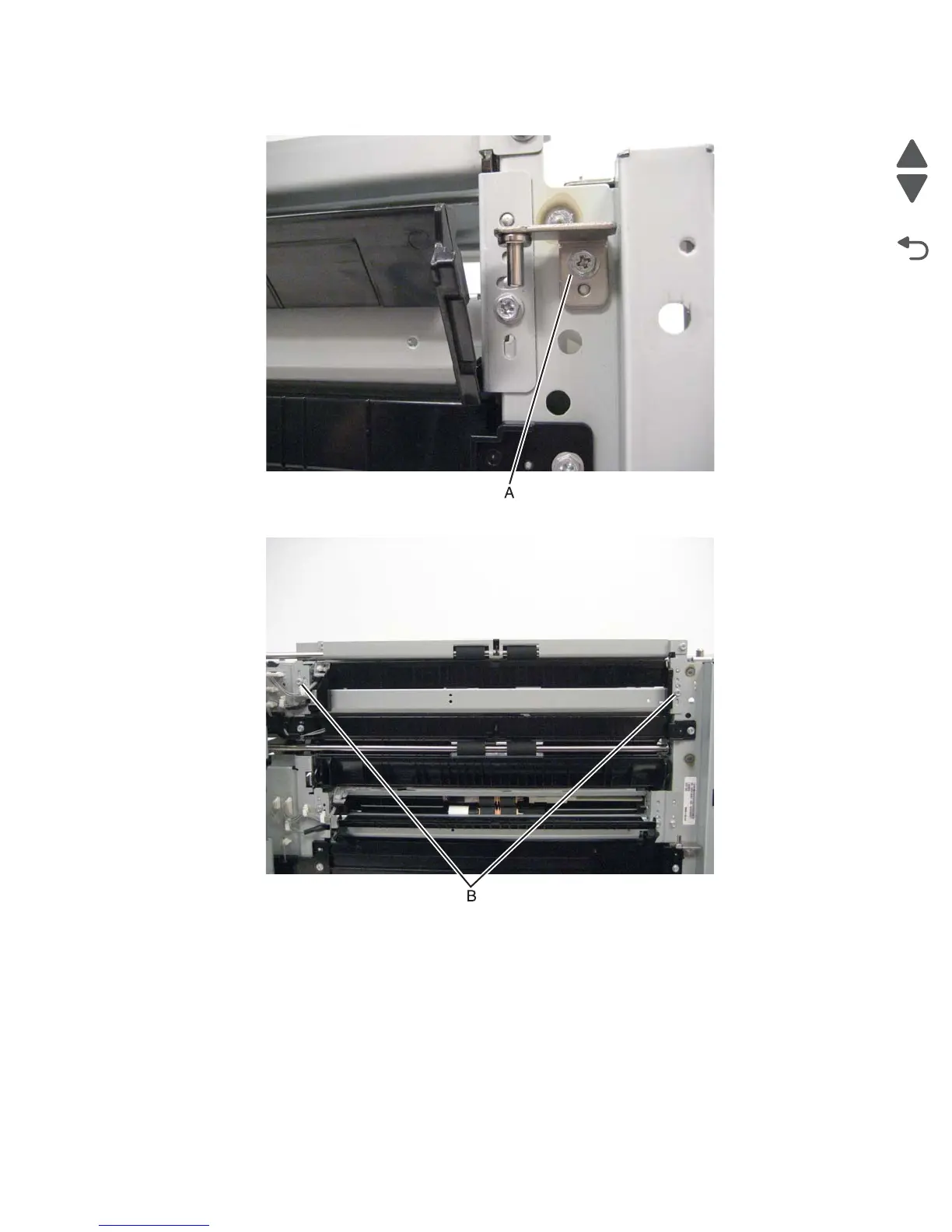

3. Remove the screw (A) securing the bracket to the machine.
4. Remove the two screws (B) securing the tray module media feeder to the machine.
5. Disconnect the two cables (C) from the machine.
