4-278 Service Manual
5058-030

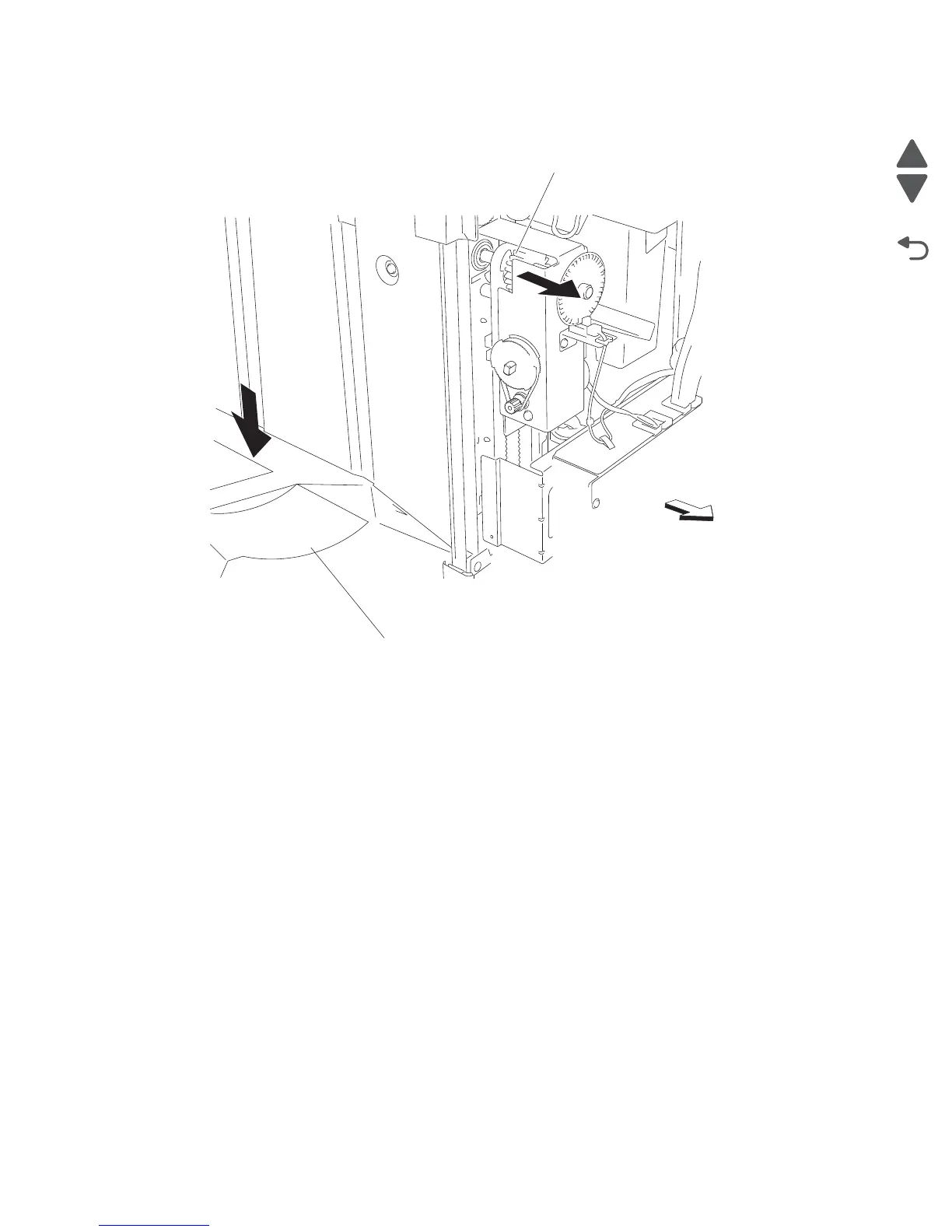

4. Move the stacker bin (B) down to its lowest position after being disengaged.
Note: Make sure the stacker bin is at its lowest position before continuing.
5. Remove the two screws securing the bin bracket (C) to the left carriage bracket (D).
6. Remove the spring (E) from the left carriage lift assembly.
7. Remove the screw securing the upper belt clamp (F) to the left carriage bracket (D).
8. Remove the upper belt clamp (F).
9. Remove the left carriage bracket with the finisher left carriage belt assembly (G) from the finisher.
10. Release the hook securing the finisher left carriage belt assembly (G) to the lower belt clamp (H).
11. Remove the finisher left carriage belt assembly (G).
To Next Page
