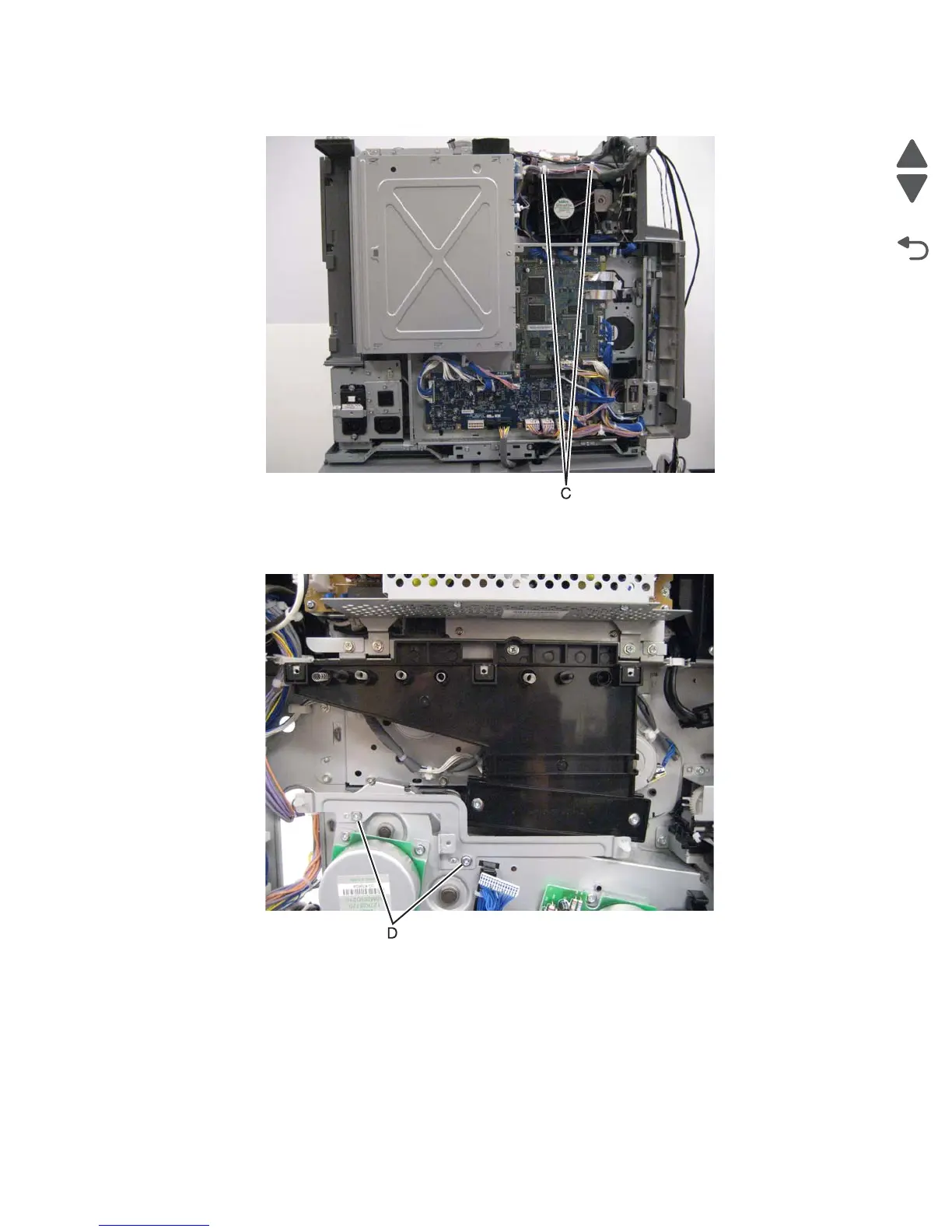

4. Release the two clamps (C) to release the harness.
5. Swing the PCBA door open.
6. Remove the transfer roll HVPS PCBA. See “Transfer roll HVPS PCBA removal” on page 4-175.
7. Remove the two screws (D) securing the bracket to the machine.
8. Remove the bracket.
