Repair information 4-227
5058-030
Go Back
Previous
Next

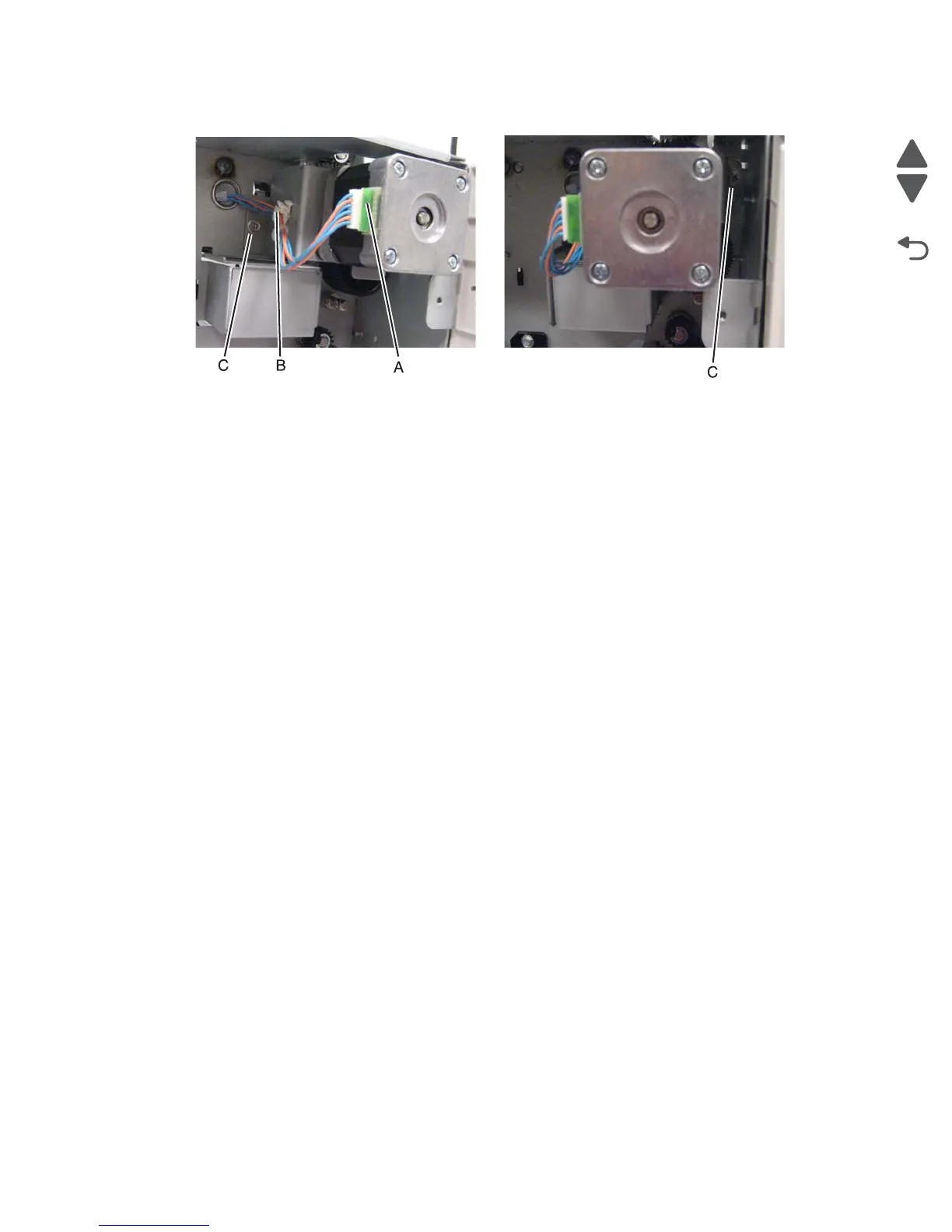

4. Remove the two screws (C) securing the TTM upper transport motor to the machine.
5. Remove the TTM upper transport motor.
