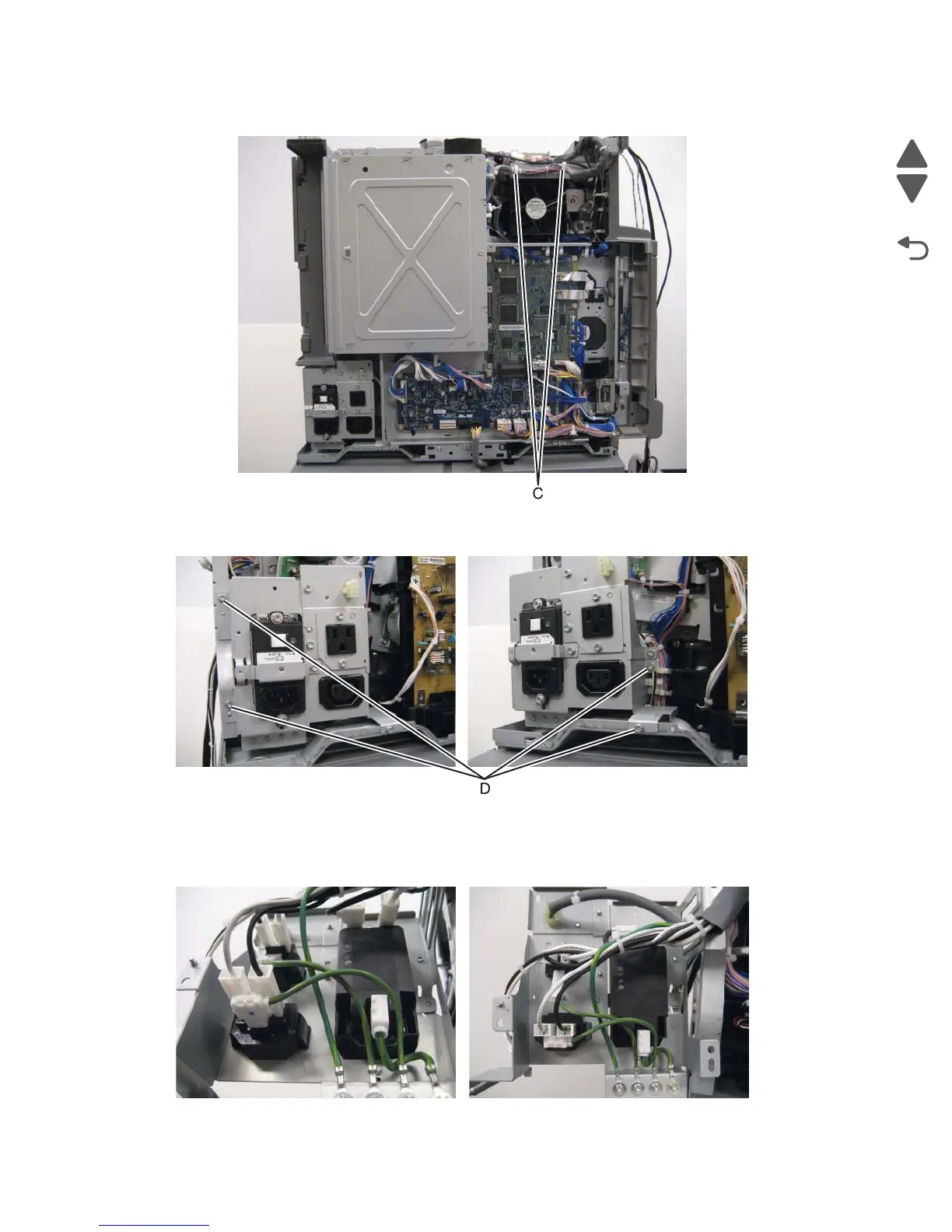

4. Release the two clamps (C) to release the harness.
5. Swing the PCBA door open.
6. Remove the four screws (D) securing the main power GFI interface to the machine.
7. Pull the main power GFI interface out of the machine.
8. Disconnect all the cables and remove the main power GFI interface.
Warning: Damage may occur if the main power GFI interface is not re-installed correctly. Make sure that
all cables are properly reconnected. Use the following photos as a guide when reconnecting the cables:
