4-194 Service Manual
5058-030
7. Remove the printhead retract door. See “Printhead retract door removal” on page 4-139.
8. Remove the inner cover. See “Inner cover removal” on page 4-3.
9. Remove the inner plate. See “Inner plate removal” on page 4-92.
10. Lift the plastic gate, and push it in to prevent the toner from spilling.

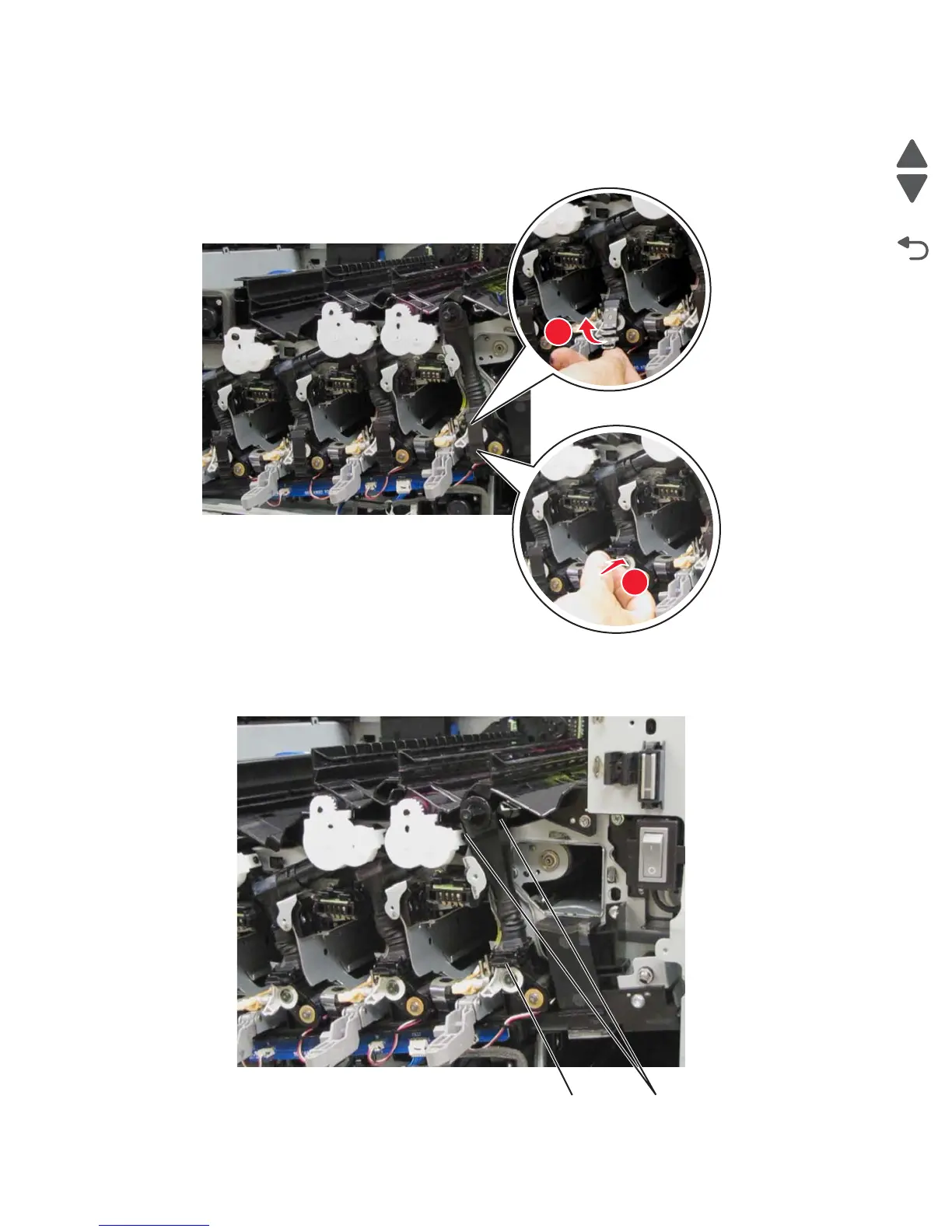

11. Release the two latches (A) connecting the upper portion of the auger.
12. Detach the lower portion (B) of the auger from the developer unit.
Warning: The lower portion of the auger is prone to damage. Extra care is required in handling this part.
To Next Page
