Repair information 4-223
5058-030
Go Back
Previous
Next

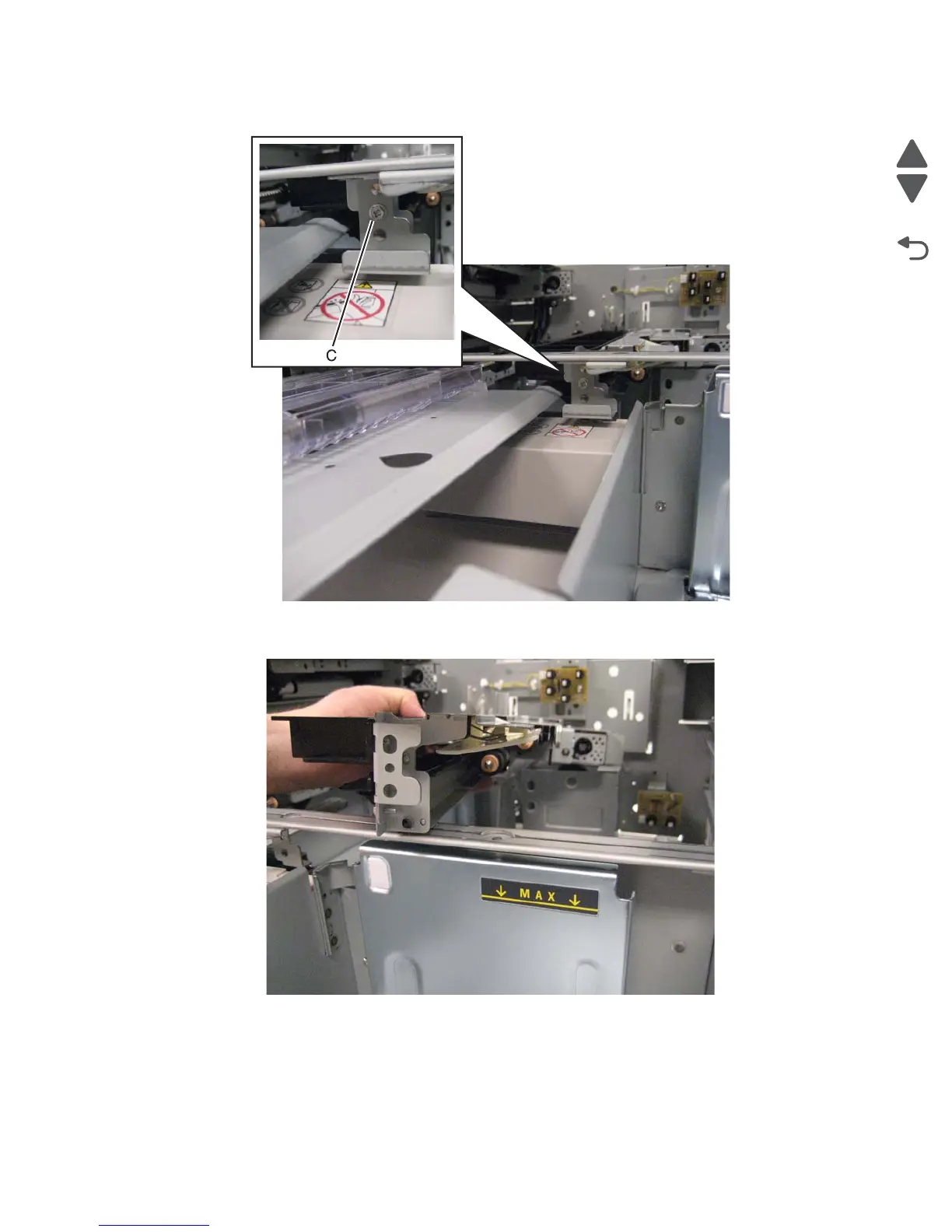

5. Remove the screw (C) securing the bracket to the machine.
6. Remove the bracket.
7. Remove the TTM tray 4 media feeder.
Reinstallation note: When replacing the TTM tray 4 media feeder, ensure that the following parts are removed
and installed on the new TTM tray 4 media feeder:
• Rear metal bracket
• TTM tray 4 lower guide
• TTM tray 4 feeder upper guide
