Lexmark C950 Service Manual

Repair information 4-343
5058-030
Go Back
Previous
Next

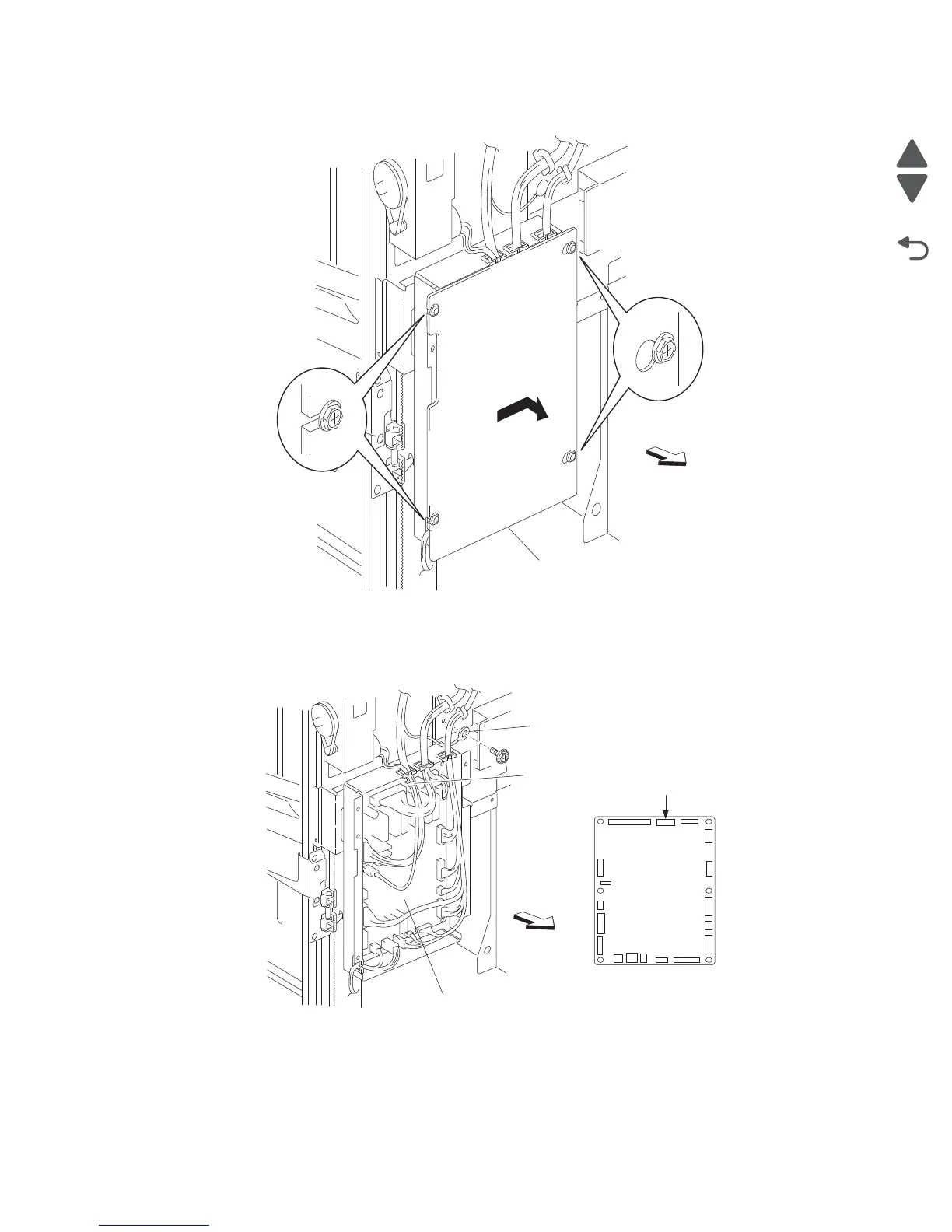

6. Move the plate (A) toward the right and out in the direction shown.
7. Remove the plate.
8. Disconnect the connector P8308 from the finisher controller card assembly (B).
9. Remove the screw securing the ground wire (C) to the finisher.
10. Release the harness from the clamp.
11. Remove the media stacker bin lift motor assembly. See “High capacity feeder (HCF) removals” on
page 4-359.
12. Disconnect the white connector and the yellow connector from the sensor (stacker bin upper limit) and the
sensor (stacker bin no media).
13. Remove the four screws securing the stapler unit frame (D) to the finisher.
A
Rear
B
Rear
C
P8308
Clamp
