Repair information 4-395
5058-030
2

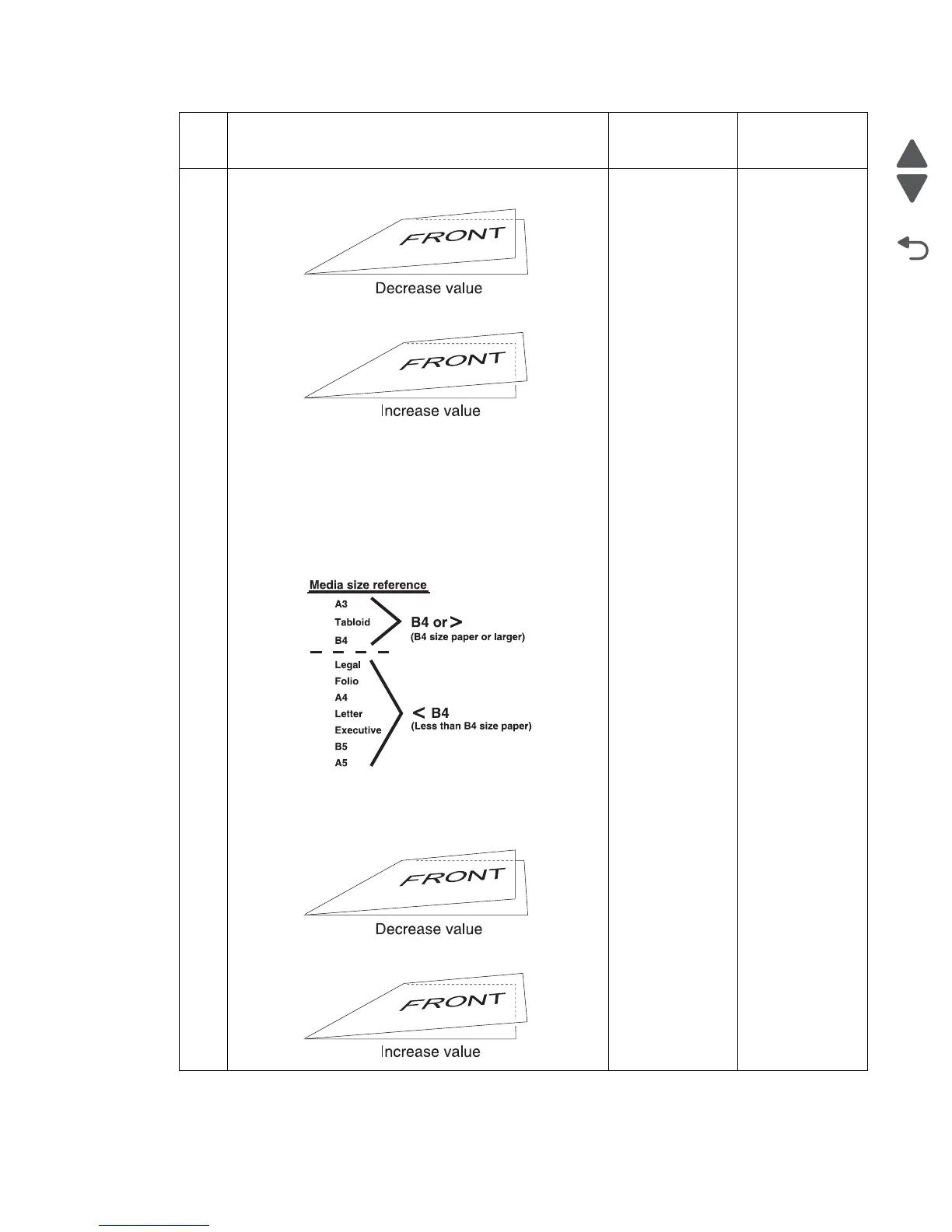

Adjust the 2 sheet position fine adjustment value based on
the graphic below:
1. Enter the diagnostic mode.
2. Touch ENGINE ADJUST.
3. Touch Booklet fold adjust.
4. Touch Booklet 2 sheet.
5. Make required fold position value adjustments
according to the media size as shown in the graphic
below. 1 step = .1 mm shift. Target amount to be
adjusted is half the amount of the total Fold
Misalignment.
6. Touch Submit.
Print a 2 page booklet using the booklet maker.
Do the booklet sheet edges appear overlapped as shown in
the graphic below?
Repeat step 2 until
the 2 sheet fold
position fine
adjustment is in
spec.
Go to step 3.
Problem solved.
Step Check Yes No
