Repair information 4-401
5058-030
2

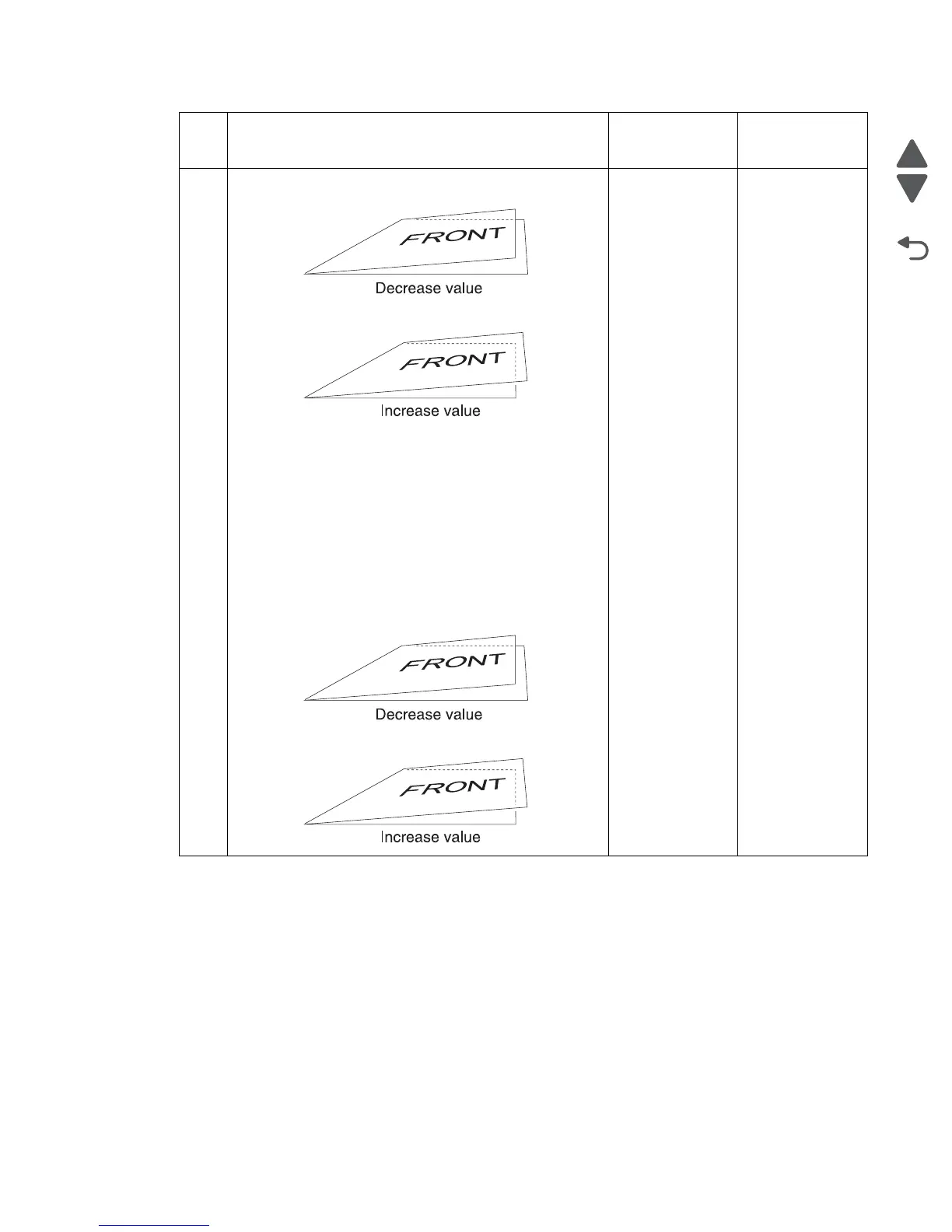

Adjust the fold position fine adjustment value based on the
graphic below:
1. Enter the diagnostic mode.
2. Touch ENGINE ADJUST.
3. Touch Booklet fold adjust.
4. Touch Booklet fold pos fine adj.
5. Make required adjustments according to media size.
1 step = .1 mm shift. Target amount to be adjusted is
half the amount of the total Fold Misalignment
6. Touch Submit.
Enter the user mode and print the appropriate booklet using
the booklet maker.
Do the booklet sheet edges appear overlapped as shown in
the graphic below?
Repeat step 2 until
the Booklet fold
position fine
adjustment is in
spec.
Problem solved.
Step Check Yes No
To Next Page
