Lexmark C950 - Page 965

Parts catalog 7-73
5058-030
Go Back
Previous
Next

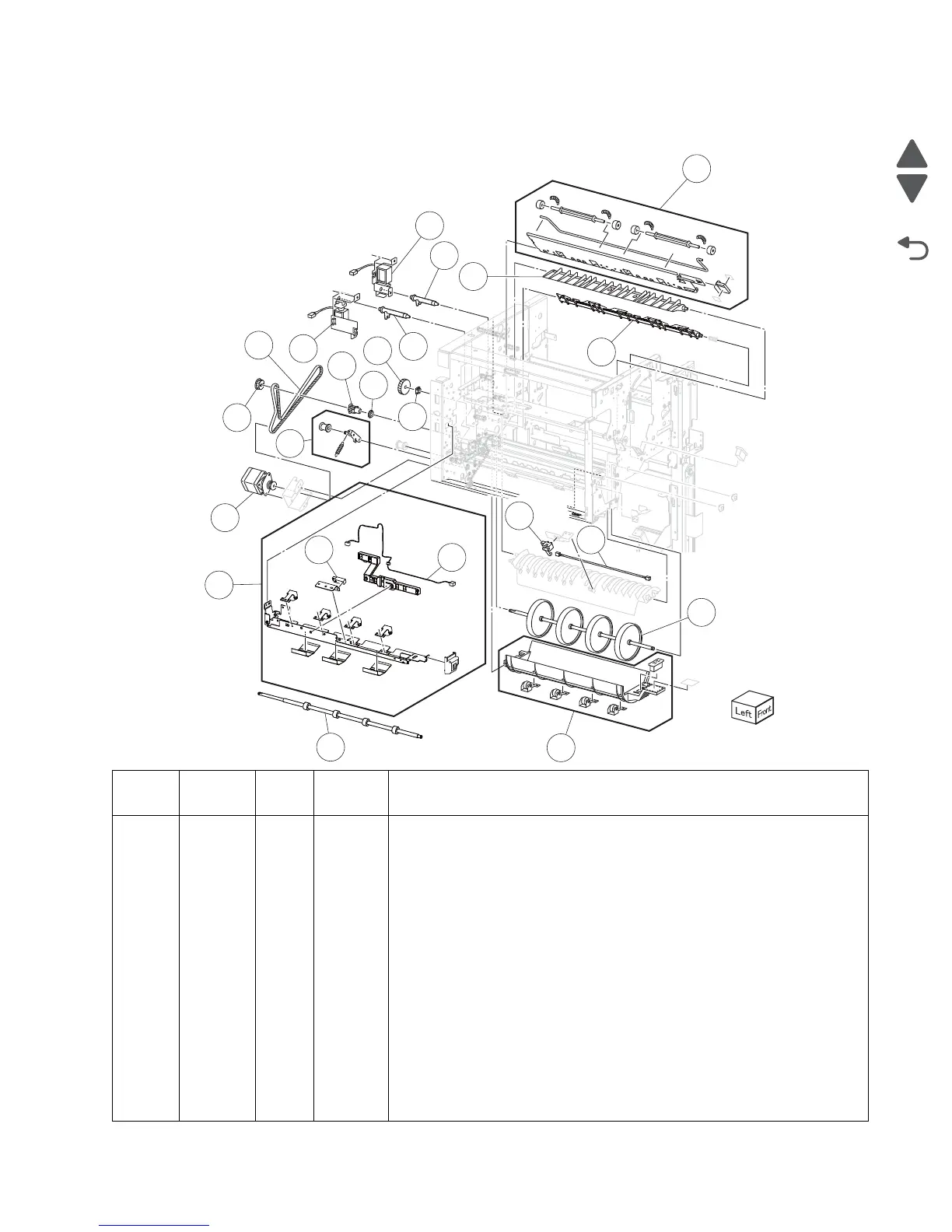

Assembly 69 (continued): Finisher—buffer and entrance drive
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
12 40X0912 31Belt idler pulley
• Spring
• Belt tensioner bracket
13 40X0888 51Bushing
14 40X0911 11Belt entrance/paddle 31.6 cm
15 40X6897 11Diverter solenoid
16 40X0914 11Media entrance roll drive pulley 20T
17 40X0913 21Ball bearing 6 mm
18 40X0888 51Bushing
19 40X0915 11Buffer roll drive gear 46T
20 40X4083 11Diverter solenoid link
21 40X7522 11Finisher diverter gate
22 40X4070 11Buffer solenoid link
23 40X6898 11Buffer solenoid
