Diagnostic aids 3-45
5058-030

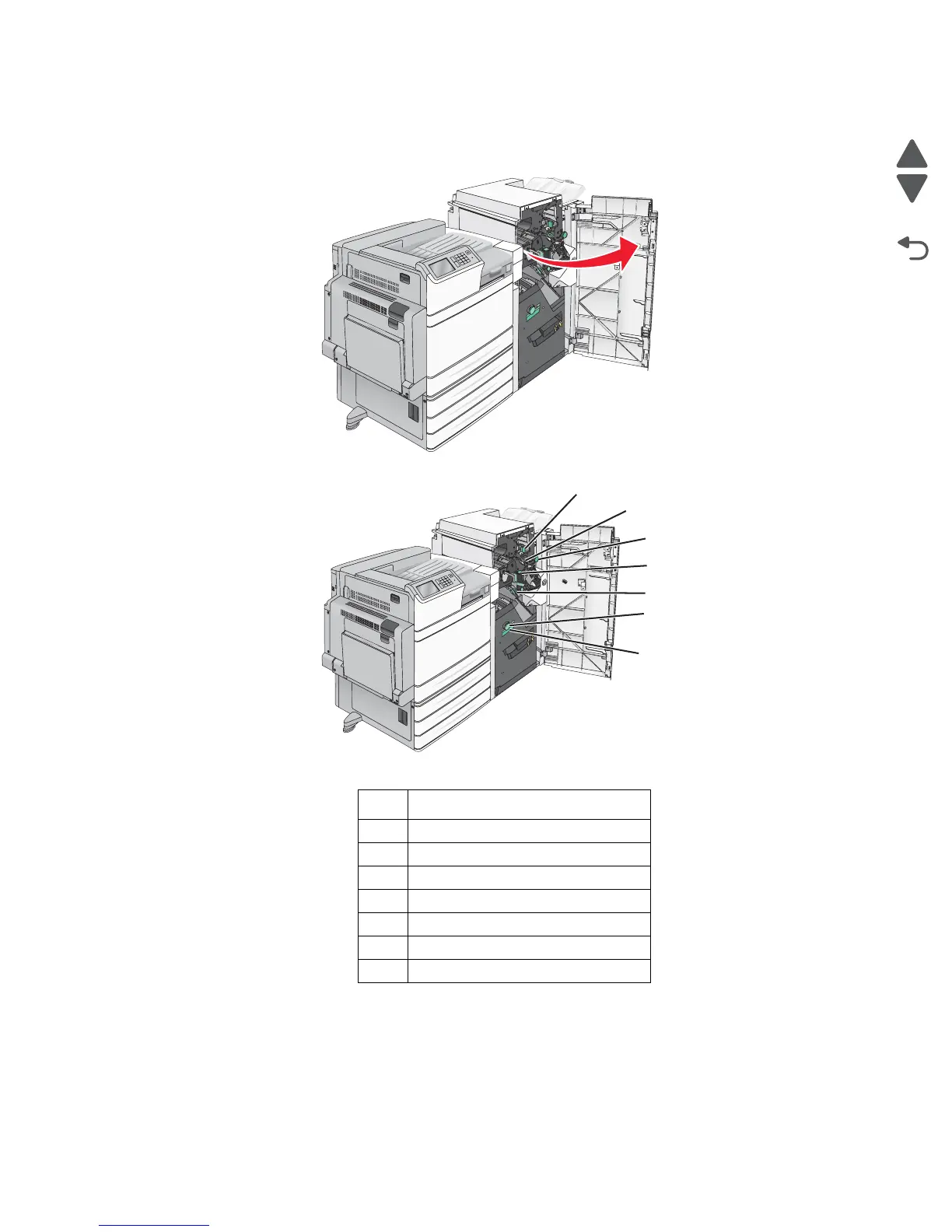

Paper jam in door G
1. Open door G.
2. Lift cover G1 lever.
3. Firmly grasp any jammed paper, and then gently pull it out.
Note: Make sure to remove all paper fragments after gently pulling out any jammed paper inside door G.
4. Move cover G2 to the right, and then remove any jammed paper.
Note: If the paper is jammed in the rollers, then rotate knob G3 counterclockwise.
Area Cover, knob, or handle name
1 Cover G1
2 Cover G2
3 Knob G3
4 Cover G4
5 Cover G7
6 Knob G8
7 Handle G9
