3-46 Service Manual
5058-030
5. Move cover G4 down, and then remove any jammed paper.
6. Move cover G7 to the left, and then remove any jammed paper.

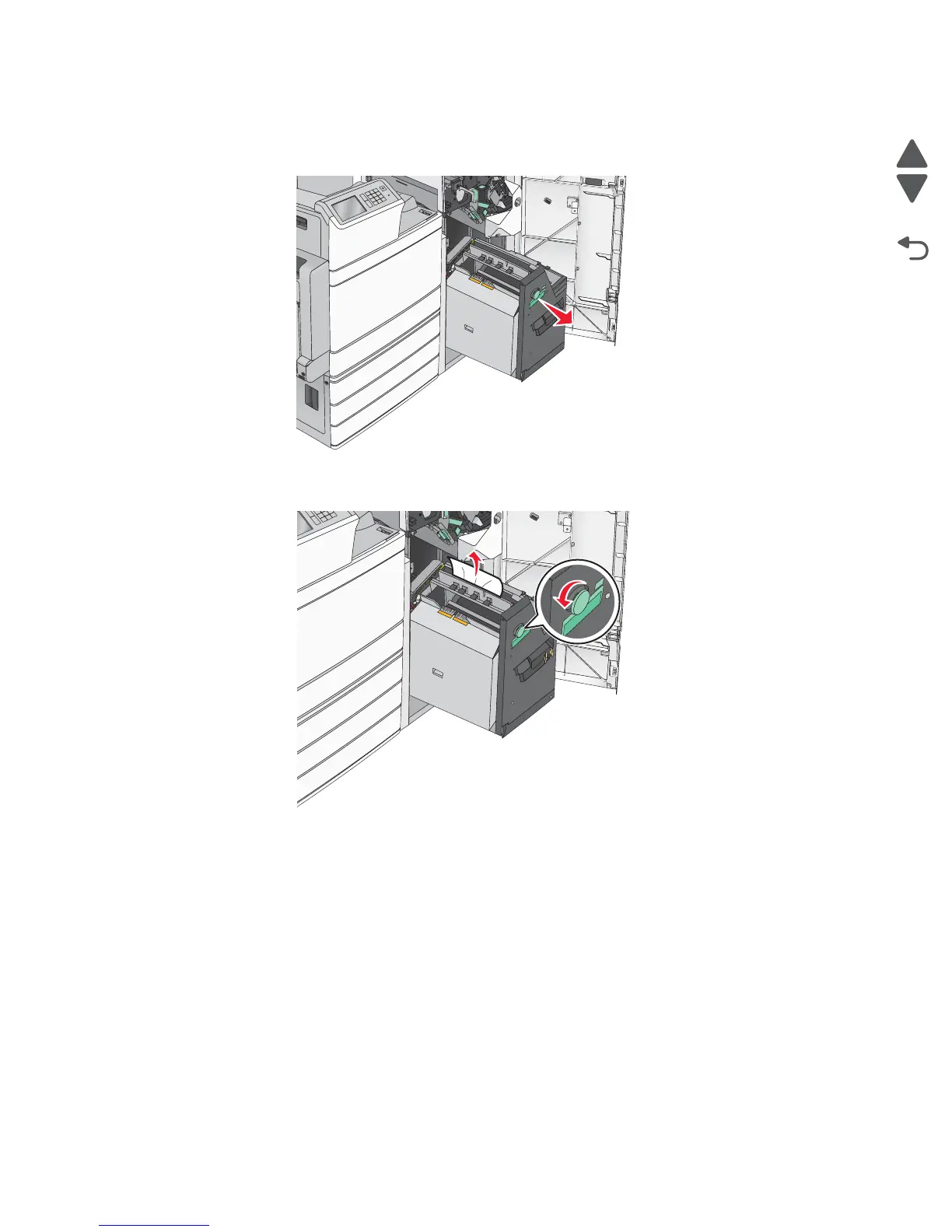

7. Pull handle G9 until the tray is completely open.
8. Lift the inside cover. If the paper is jammed in the rollers, then rotate knob G8 counterclockwise, and then
remove the jammed paper.
9. Close door G.
10. If necessary, touch Continue from the printer control panel.
