Repair information 4-89
5058-030
Go Back
Previous
Next

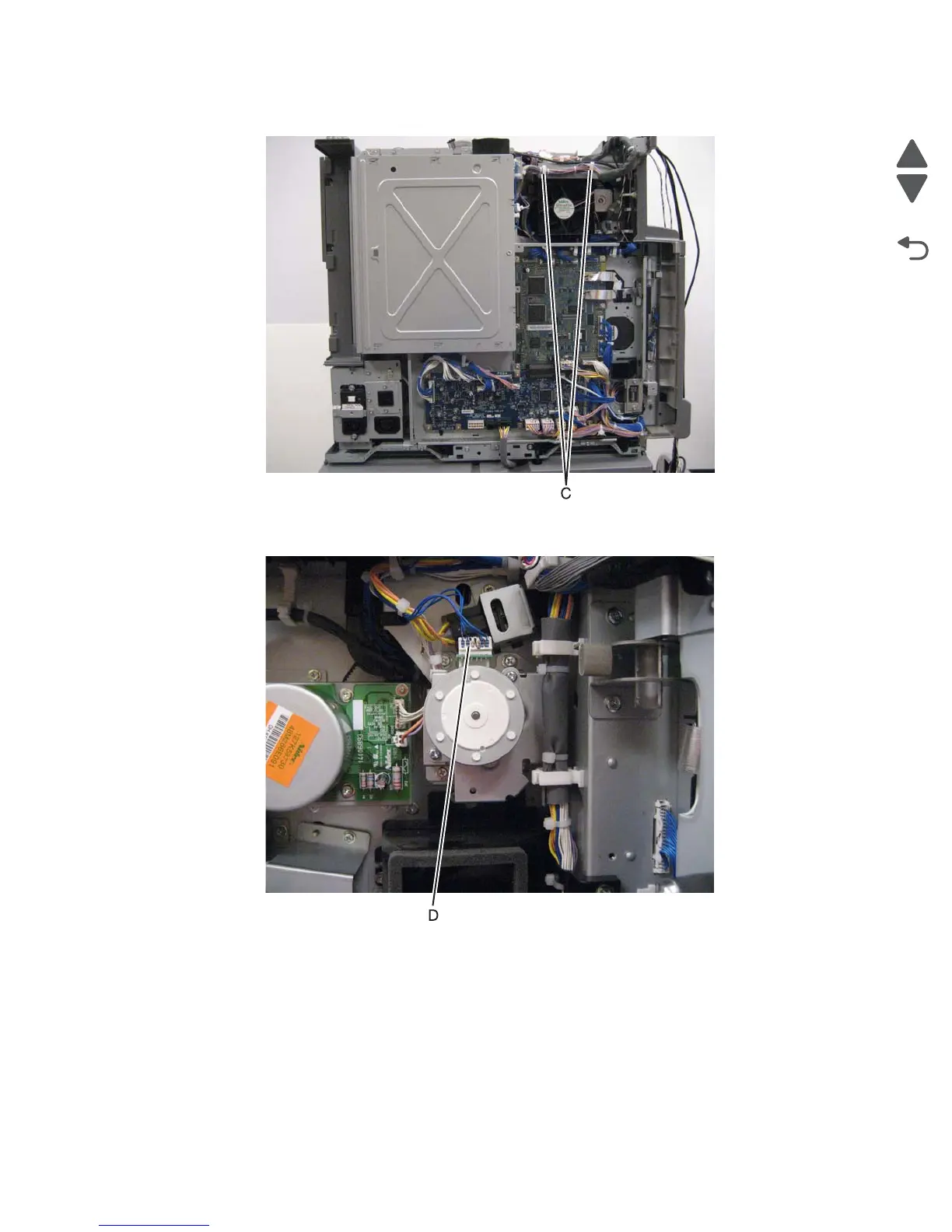

4. Release the two clamps (C) to release the harness.
5. Swing the PCBA door open.
6. Disconnect the cable (D) from the fuser pressure roll retract motor.
