4-90 Service Manual
5058-030
Go Back
Previous
Next

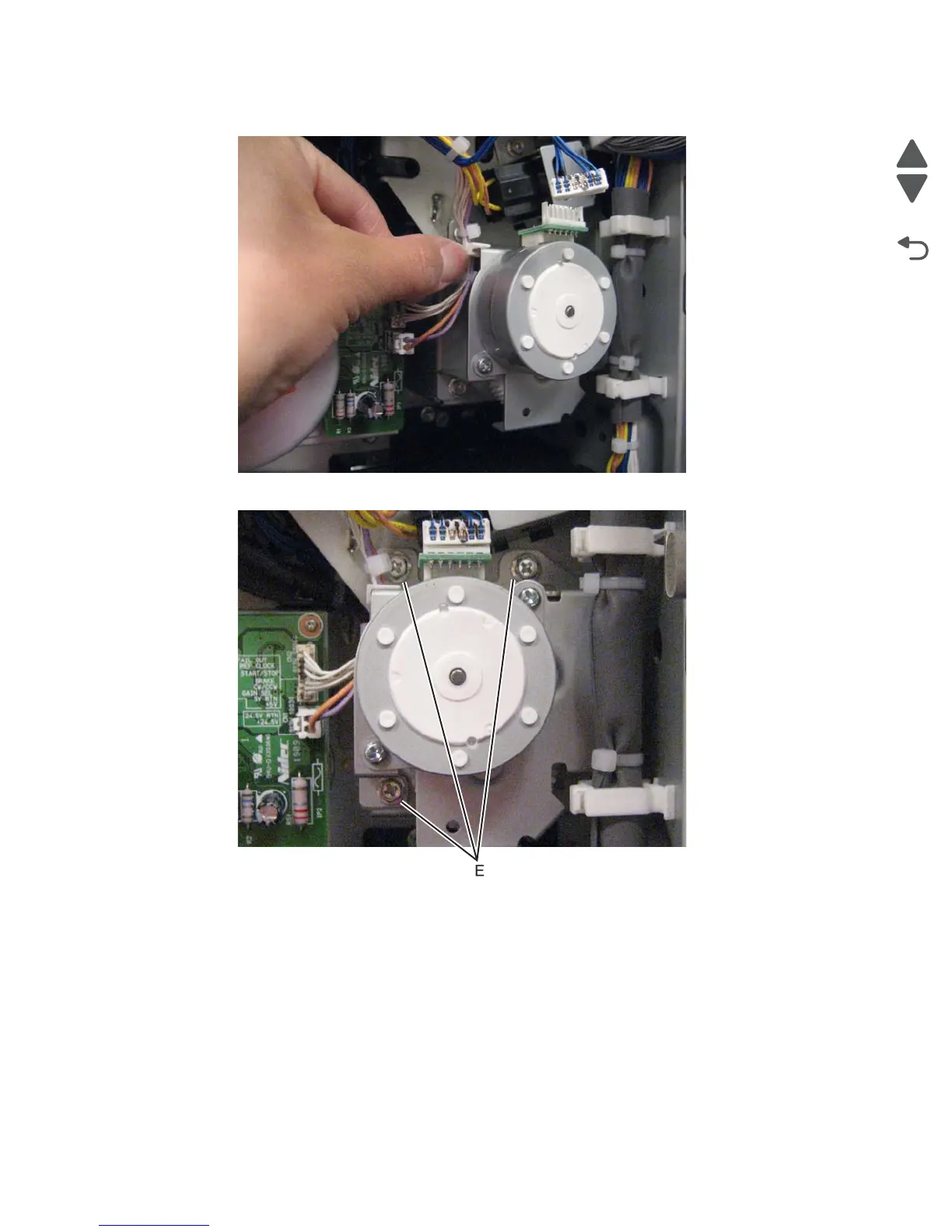

7. Release the harness from the clamp.
8. Remove the three screws (E) securing the fuser pressure roll retract motor to the machine.
9. Remove the fuser pressure roll retract motor.
