Lexmark C950 - Page 528

4-100 Service Manual
5058-030
Go Back
Previous
Next

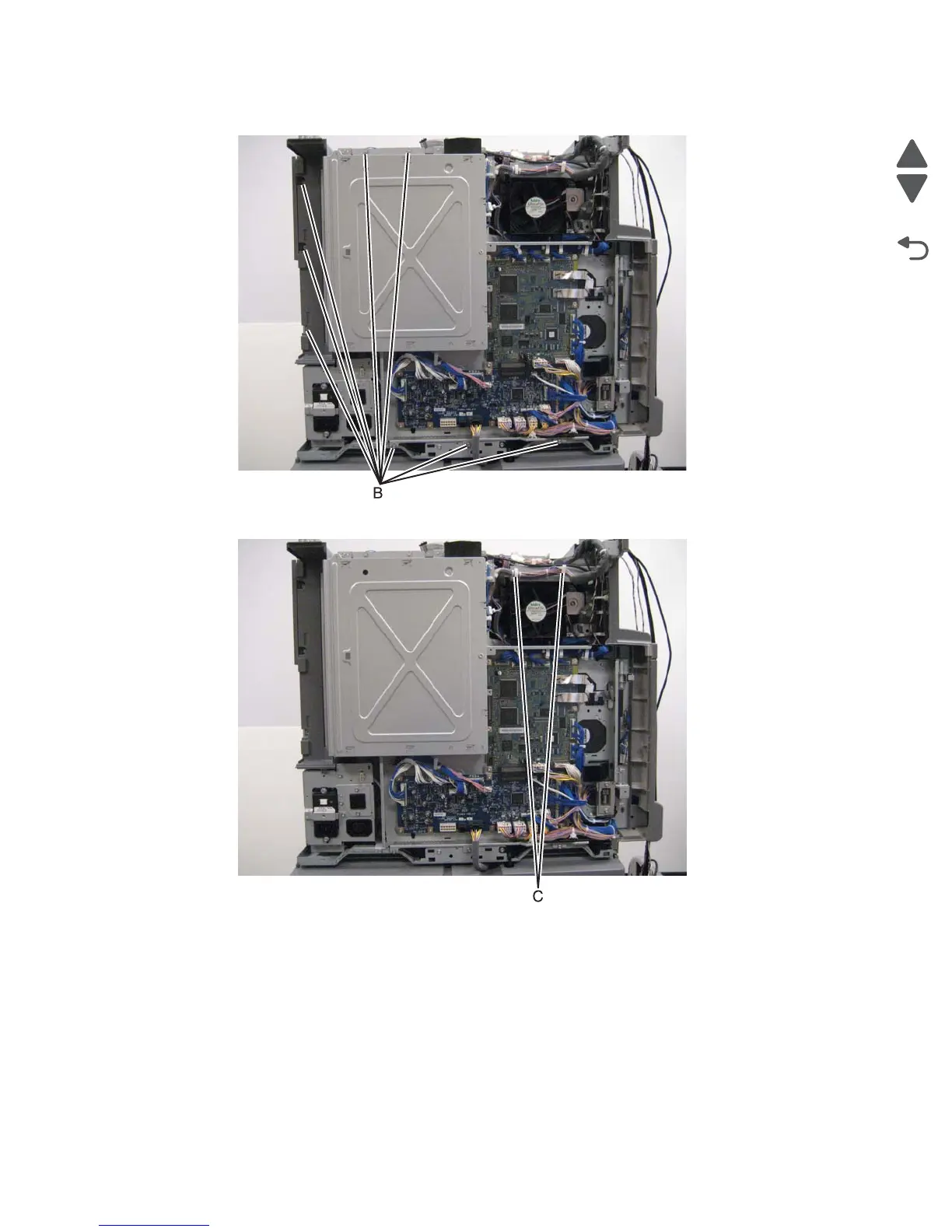

6. Remove the eight screws (B) securing the PCBA door to the machine.
7. Release the two clamps (C) to release the harness.
8. Swing the PCBA door open.
9. Remove the fuser redrive/lower redrive/1st BTR retract motor. See “Fuser/lower redrive/1st BTR retract
motor removal” on page 4-91.
