Repair information 4-101
5058-030
Go Back
Previous
Next

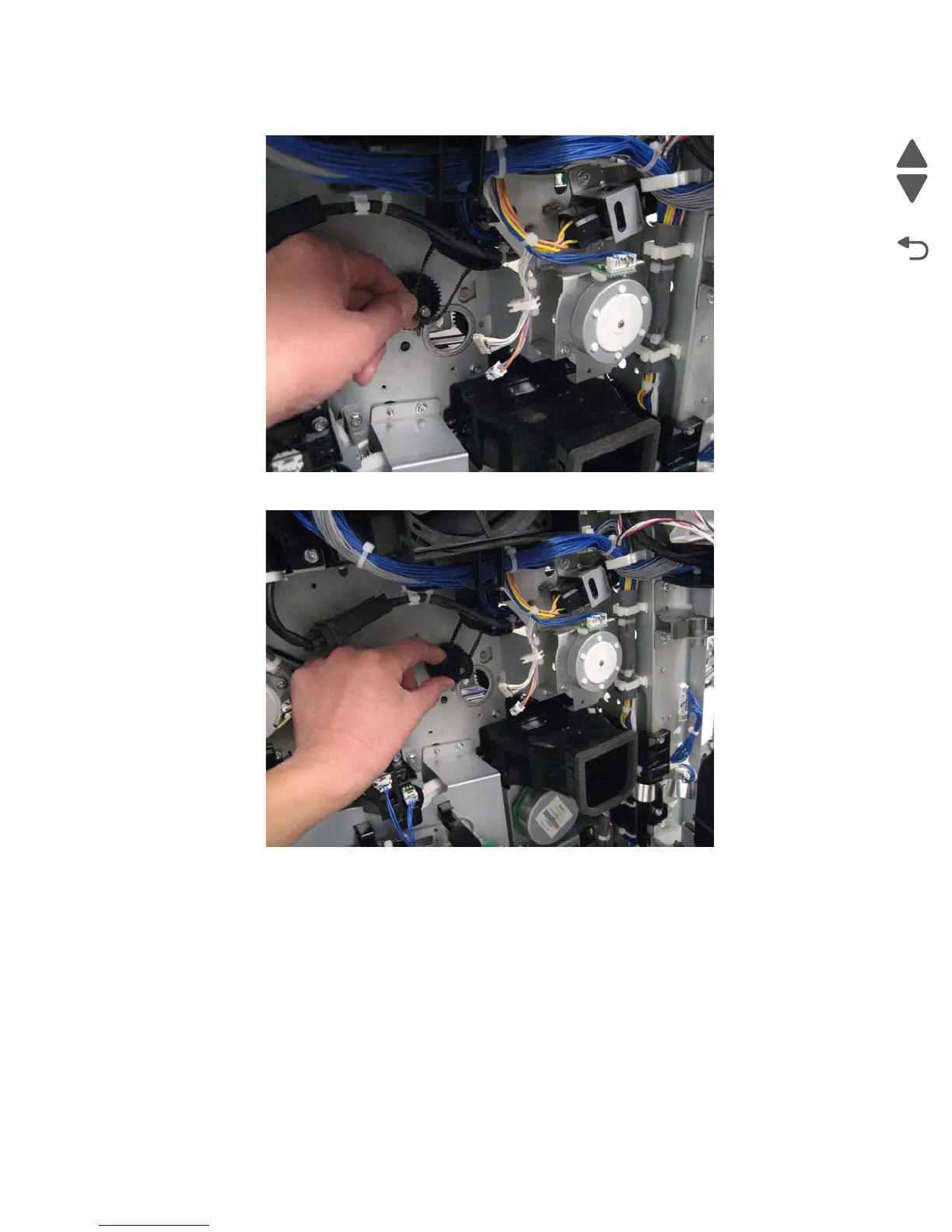

10. Gently pull the belt guide to detach it from the machine.
11. Remove the belt guide.
12. Detach the drive belt from the pulley.
13. Disconnect the three cables (D) from the lower redrive shift motor assembly.
