Tektronix TDS5000B Series Online Programmer Guide

TDS5000B Online Programmer Guide
-- 4 --

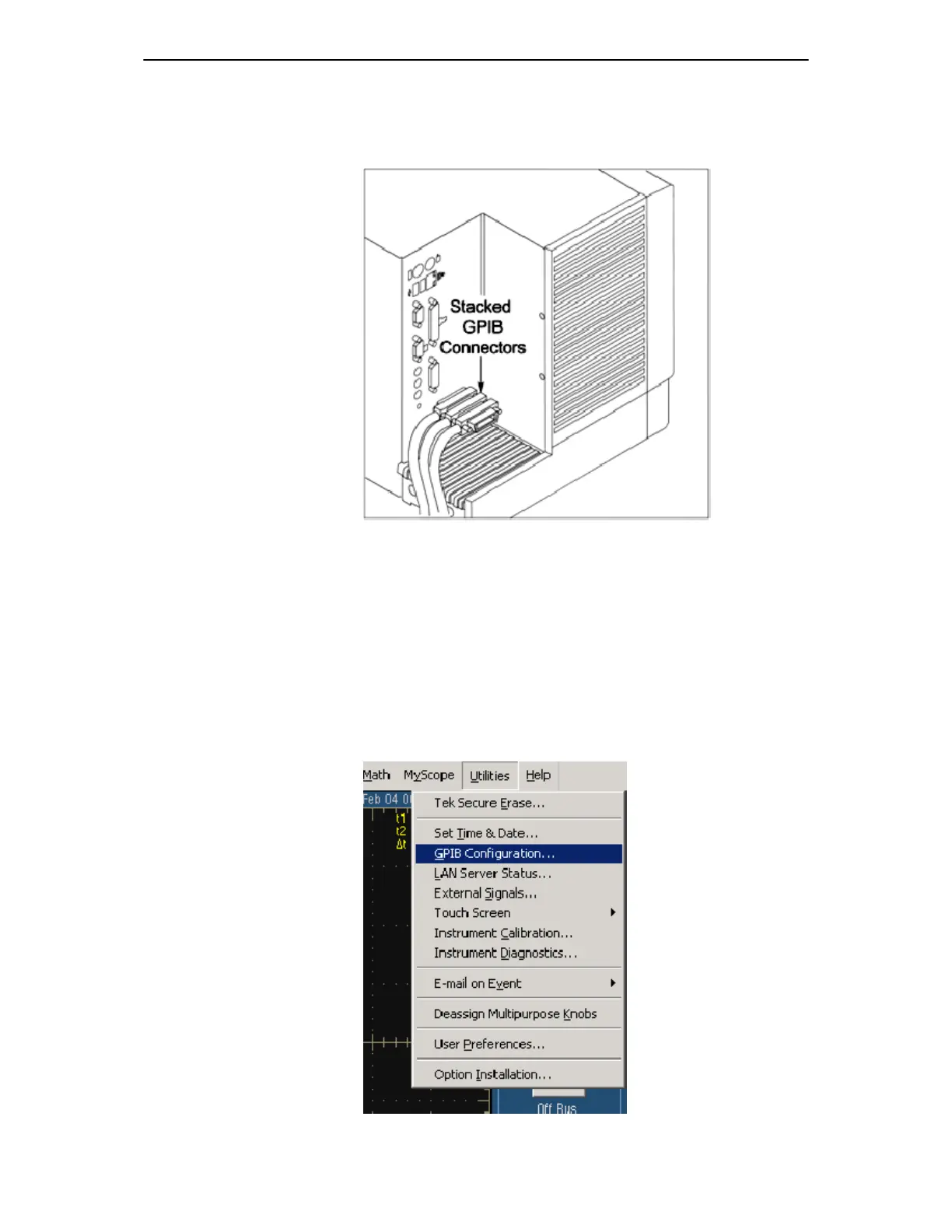

If necessary, the GPIB connectors can be stacked as shown in the figure
below.
Setting the GPIB Address
To function correctly, your instrument must have a unique device ad-
dress. The default settings for the GPIB configuration are:
H GPIB Address 1
H GPIB ModeGPIB Talk/Listen
To change either of the GPIB settings, do the following:
1. Select GPIB Configuration… from the Utilities menu.
