Xerox Phaser 7100 Service Manual

General and Operation Overview
Phaser 7100 Service Manual Xerox Internal Use Only1-76
Duplex Feed (Option)
• Duplex Clutch (Duplex In Clutch Assembly) - Transfers the drive of the Duplex Motor to the Exit
Roller that is part of the Fuser Assembly. Normally, the Exit Roller rotates in the paper output
direction by the drive of the Fuser Motor. When the paper is to be reversed for side 2 print, the
Duplex Clutch activates, changing the drive source to the Duplex Motor so that the Exit Roller
performs reverse rotation in the Duplex Assembly direction.
• Duplex Motor (Duplex Earth Motor Assembly) - Drives the Duplex 1 Roller and Duplex 2 Roller to
transport the paper in the Duplex Assembly.
• Duplex Jam Sensor - Detects whether the paper is being transported in the Duplex Assembly by
changes in the Actuator.
(No paper: Sensor blocked)
• Duplex PWB - Controls the various components in the Duplex Assembly.

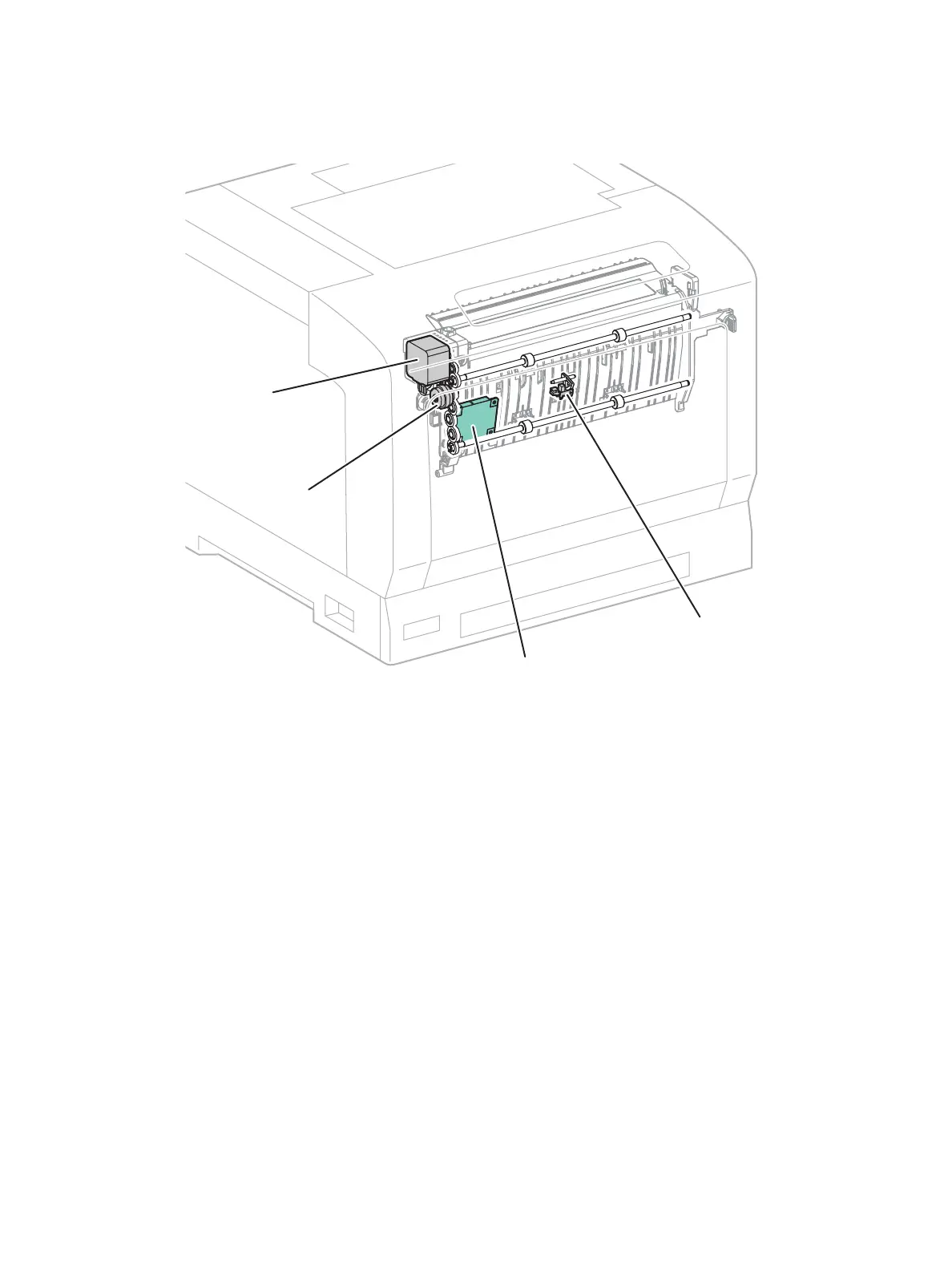

s7100-198
Duplex In Clutch
Duplex Motor
Duplex Jam Sensor
Duplex PWB

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
