Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-64
REP 2.20 End Guide Assembly
PL 2.3.31
1. Remove Tray 1.
Note: If the paper Tray is loaded with A3 paper, steps 2 and 3 are not required.

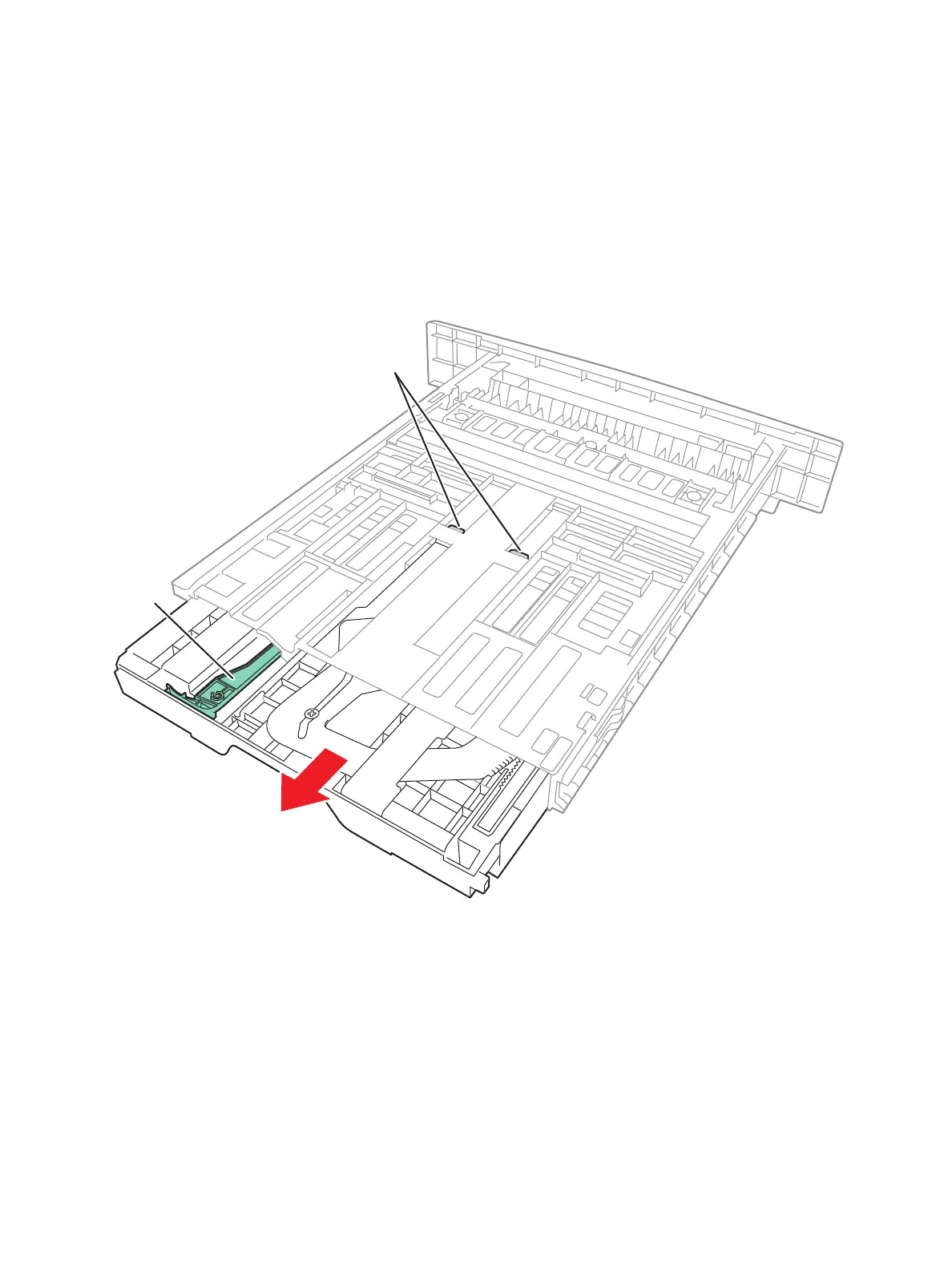

2. Turn the Tray over, press the Lever while pressing the tabs on the bottom of the Tray and pull the
Exit Housing Assembly (PL 2.3.32) to the rear.
