Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-289

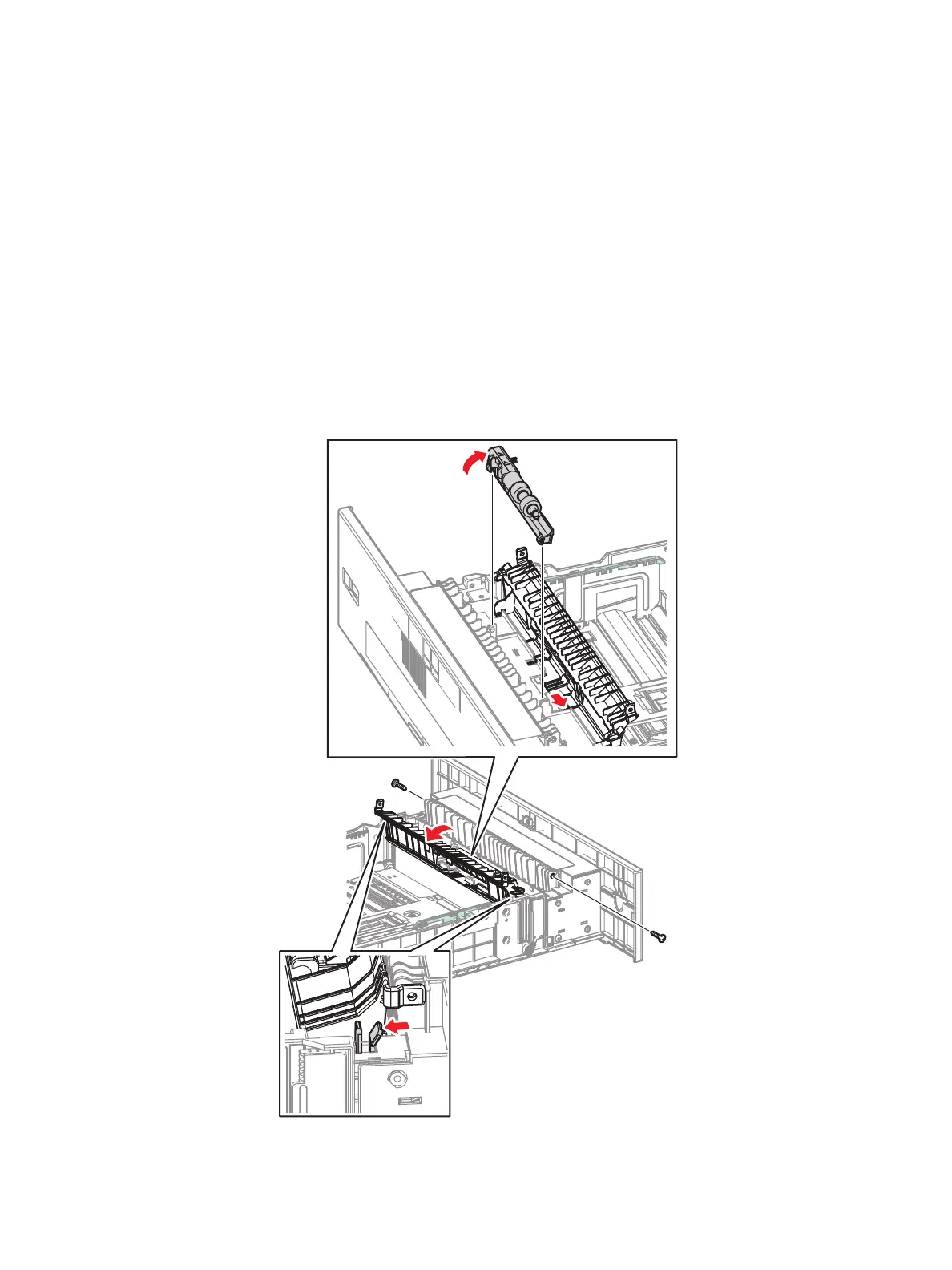

REP 15.25 Retard Holder Assembly
PL 15.3.15
1. Remove Tray 2/ 3/ 4.
2. Remove 2 screws (silver, tapped, 8 mm) that secure the Retard Chute (PL 15.3.21).
3. Release the left and right hook and open the Retard Chute.
Note: When performing the next step, do not drop or lose the Retard Spring (PL 15.3.16) that is
attached to the Retard Holder Assembly.
4. Slightly release the hook on the right side of the Retard Holder Assembly outward and rotate the
Retard Holder Assembly 90°.
5. Open the hook on the right side of the Retard Holder Assembly outward and free the hole of the
Retard Holder Assembly from the boss that is attached to the hook to remove it.
s7100-334

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
