Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-206

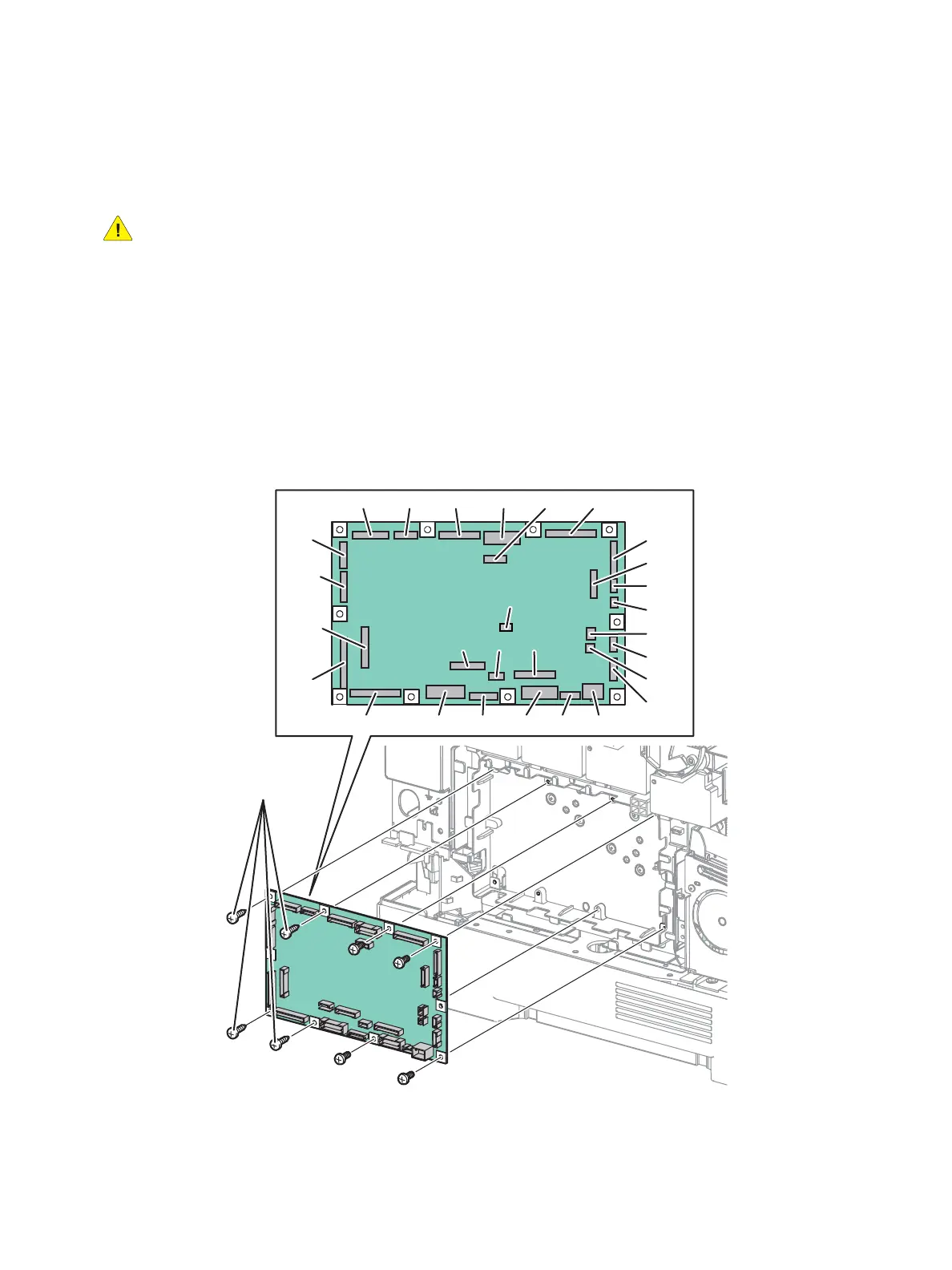

REP 12.4 MCU PWB
PL 12.1.15
CAUTION: PWB’s can be damaged by an electrostatic discharge. Observe all ESD procedures to
avoid component damage.
1. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
2. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
3. Remove the Left Side Cover (REP 1.10 Left Side Cover on page 4-25).
4. Disconnect all the wiring harness connectors that are connected to the MCU PWB.
5. Remove 4 screws (silver, tapped, 8 mm) and 4 screws (silver, 6 mm) that secure the MCU PWB to
the printer.
6. Remove the MCU PWB.
s7100-271
P/J459
P/J451 P/J452 P/J454 P/J455 P/J476 P/J462
P/J469 P/J468 P/J461 P/J465 P/J466 P/J463
P/J457
P/J460
P/J473
P/J453
P/J456
P/J458
P/J467
P/J474
P/J472
P/J470
P/J471
P/J477 P/J464 P/J475
P/J492 (NC)
Plastic Screws

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
