Xerox Phaser 7100

Parts List
Xerox Internal Use Only Phaser 7100 Service Manual 5-35

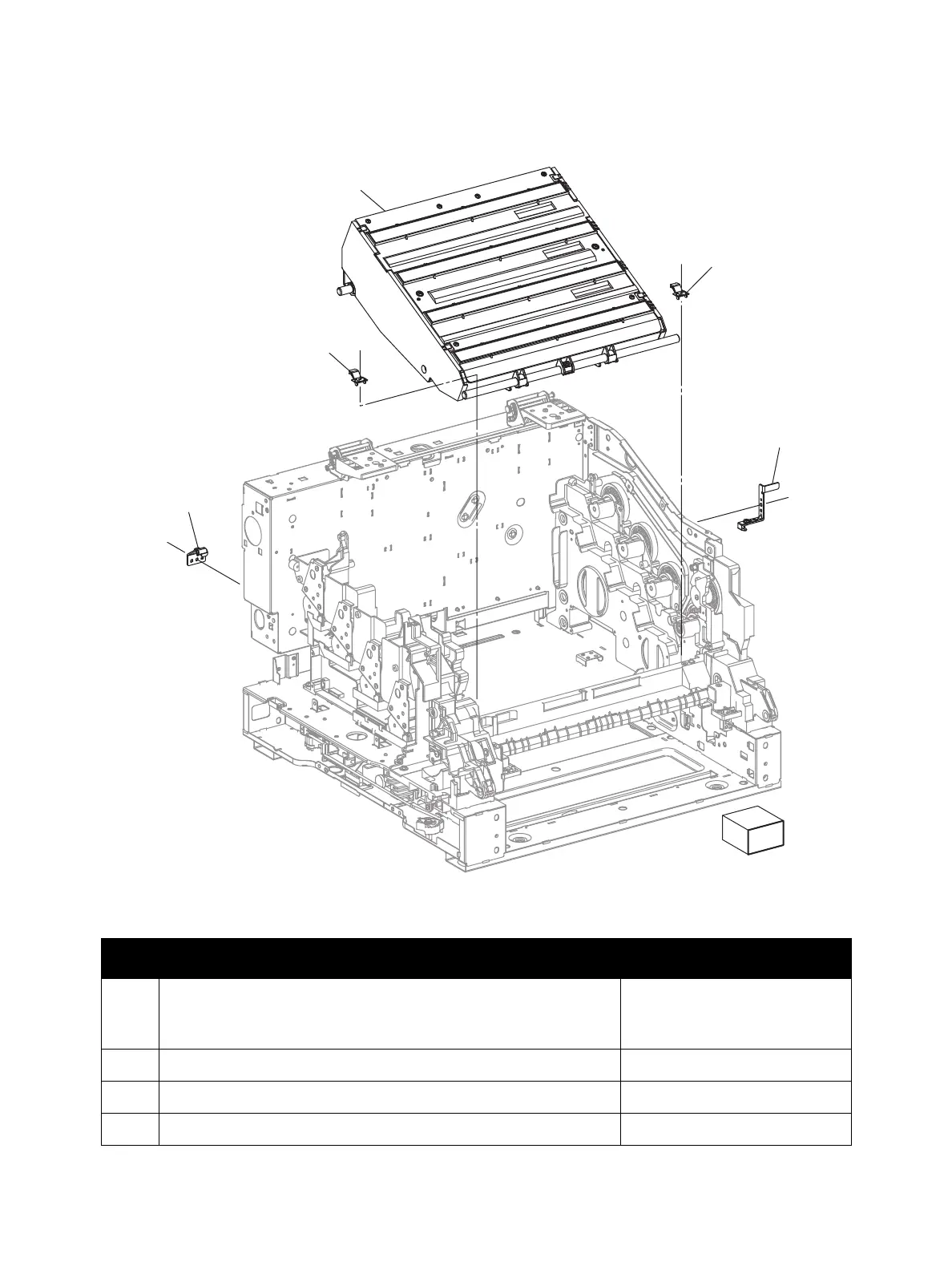

Parts List 7.1 ROS (Laser Unit)
Parts List 7.1 ROS (Laser Unit)
Item Description Part Number
1. ROS Assembly (Laser Unit) (REP 7.1 ROS Assembly (Laser Unit)/
Front Spring Assembly/ Right Rear Spring Assembly/ Left Rear
Spring Assembly on page 4-130)
062K21146
2. Front Spring Assembly
3. Right Rear Spring Assembly
4. Left Rear Spring Assembly
s7100-013
Left
Front
S
S
S
S
1
2
2
3
4
