REP 12.20 Image Processor PWB Fan
PL 12.4.6
1. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
2. Disconnect the wiring harness connector P/J311.

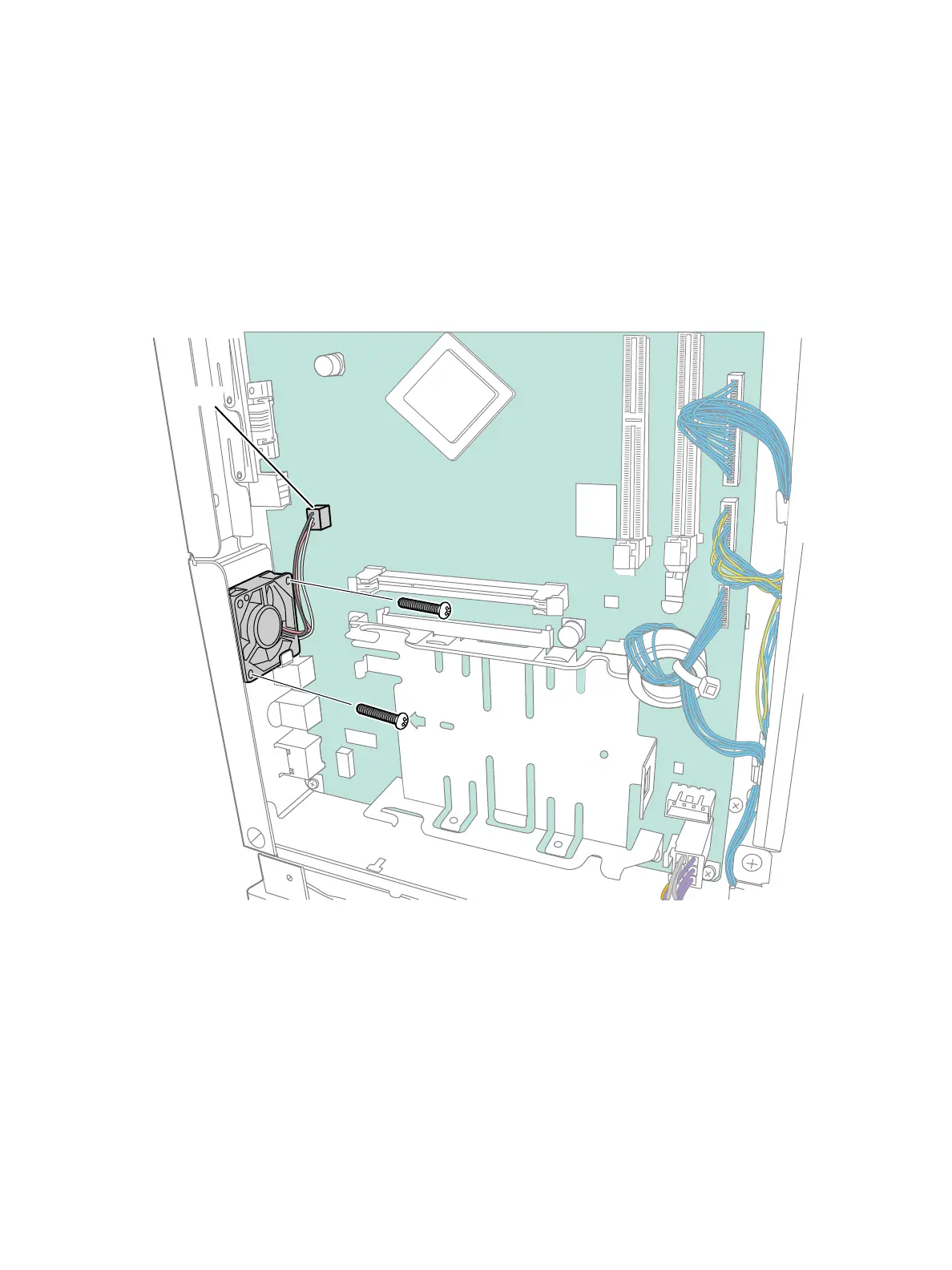

3. Remove 2 screws that secure the Fan.
4. Remove the Fan.
s7100-354
P/J311
