Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-187
REP 11.2 Input Imaging Unit Shaft Assembly
PL 11.1.5
1. Remove Tray 1.
2. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
3. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
4. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
5. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).
6. Remove the PR Drive Assembly (K) (REP 11.8 PR Drive Assembly (K) on page 4-200).
Note: When pulling out the Input Imaging Unit Shaft Assembly in the following step, make sure
not to drop or lose the Ball Bearings (PL 11.1.4).

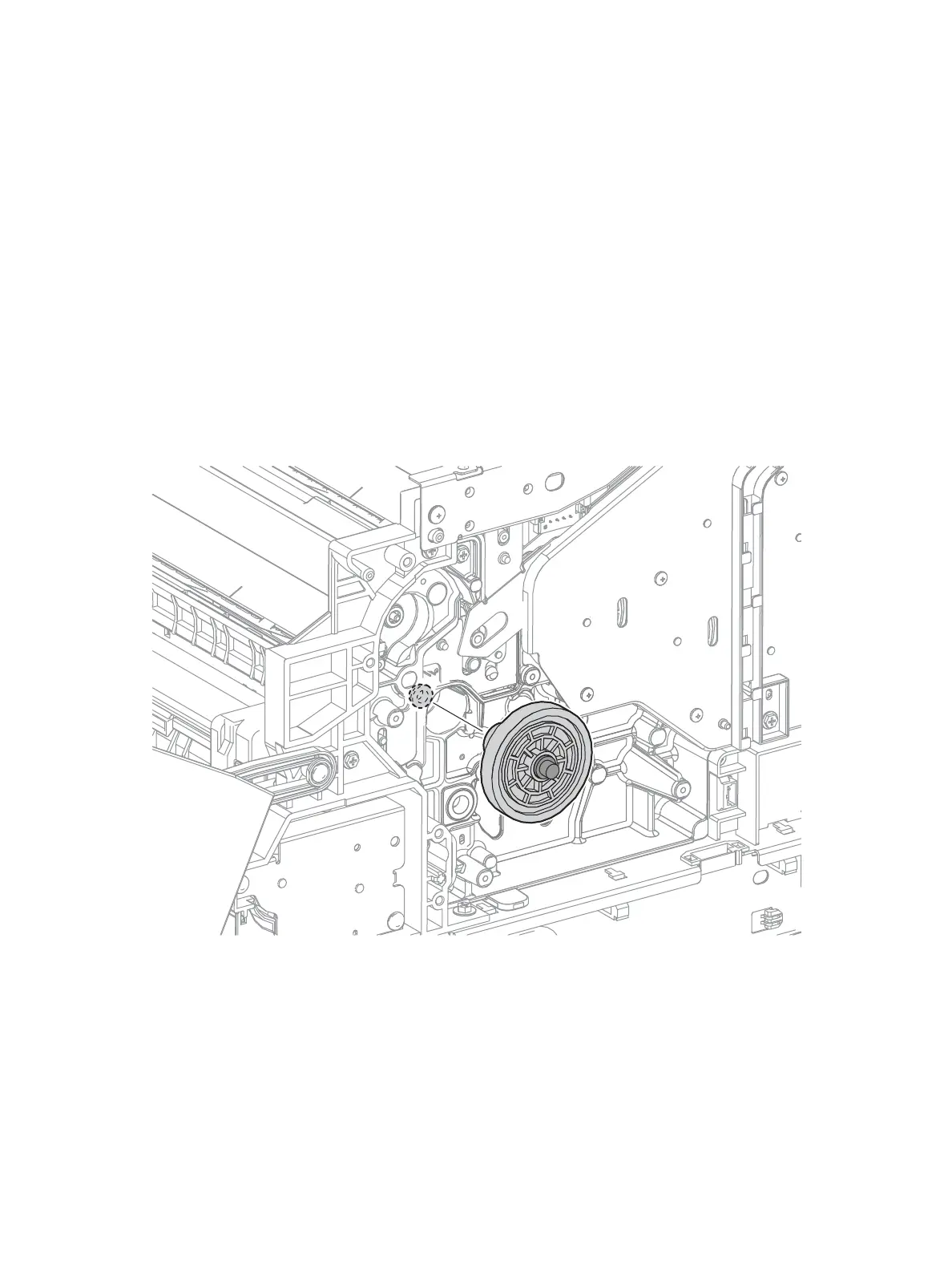

7. Pull out and remove the Input Imaging Unit Shaft Assembly from the printer.
To Next Page
